SS303 SS304 Flat Head Rivets Solid Hinge Sliding Supports Precision Hardware Rivets
|
SS303 SS304 Flat Head Rivets Solid Hinge Sliding Supports Precision Hardware Rivets
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-20008 |
Product Details
Material:
SUS304 / DIN 2462
Category:
Rivet
Surface Treatment:
Passivation
Processing Technology:
Cold Heading
Sample Period:
10 To 15 Days
Precision:
Min0.001
Head Shape:
Circle
Color:
Nickel
Samples:
Available
Packing:
Plastic Bag And Carton Box
Name:
Electrical Contact Rivet
Standard:
ISO GB DIN ANSI JIS
Highlight:
SS303 flat head rivets
,SS304 flat head rivets
,Precision Hardware Rivets
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description

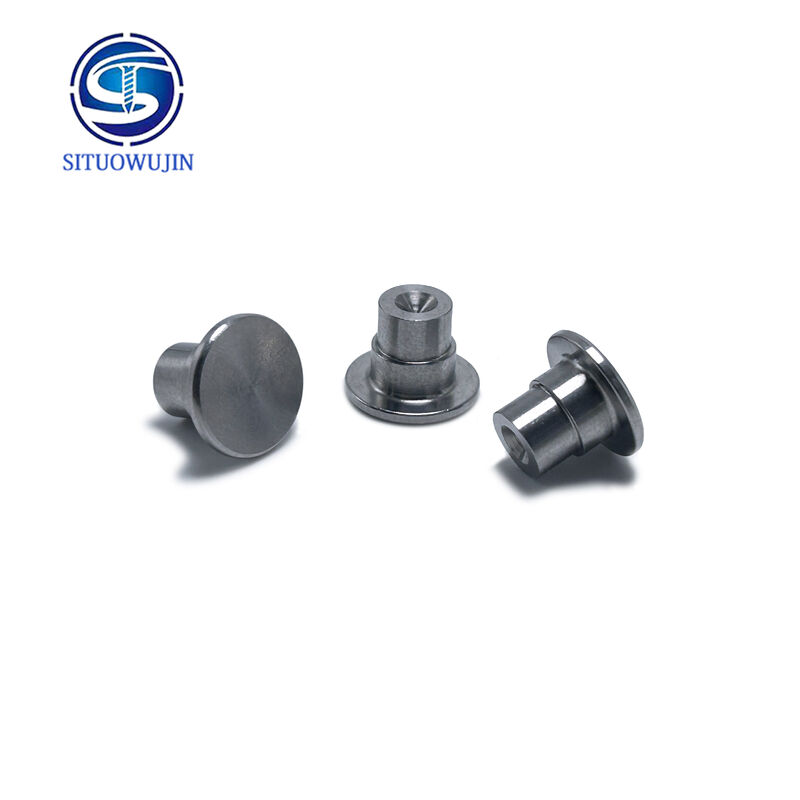

SS303 SS304 Flat Head Rivets Solid Hinge Sliding Supports Precision Hardware Rivets
Stainless steel flat head rivets, solid rivets, hinge sliding supports - high-quality precision hardware
Advantages of Solid Rivets
- Extremely high strength - Superior tensile strength, shear resistance and impact resistance, far stronger than blind rivets and hollow rivets.
- Permanent fastening, never loose - After riveting, they form a permanent deformation lock without threads, ensuring no loosening under vibration, wind load or repeated operation.
- Excellent reliability and long service life - No mandrel or hollow cavity, less prone to fracture and corrosion, providing long-term durability.
- Good fatigue resistance - Ideal for components under long-term repeated stress, such as door and window hinges and load-bearing structures.
- Good sealing performance - Non-porous solid body ensures reliable waterproofing, dustproofing and airtightness with gaskets or sealant.
- High dimensional accuracy and stable assembly - No bulging or deformation after installation, suitable for precise and aesthetically demanding applications.
- Good high temperature and fire resistance - Stable performance under high temperature, suitable for fire-resistant doors, windows and metal structures.
- Wide material selection and strong corrosion resistance - Available in stainless steel, aluminum alloy, copper and carbon steel; stainless steel models excel in salt spray and aging resistance.
- Suitable for heavy-duty and thick plate connections - Particularly advantageous for heavy, thick and load-bearing structural assemblies.
The Optimal Production Process for Solid Rivets: Cold Heading
Key Points Solved by Cold Heading
- Solves insufficient strength & easy fracture - Cold heading forms metal at room temperature through extrusion, maintaining continuous metal fibers without cutting. Produces dense grain structure, delivering much higher tensile, shear and fatigue resistance than turning or casting.
- Solves unstable dimensions & assembly jamming - Cold heading provides high dimensional accuracy with consistent diameter, length and head shape. Stable batch tolerances avoid issues such as eccentricity, taper or distortion.
- Solves rough surface & scratching profiles/hardware - Cold-headed parts have smooth, burr-free surfaces without tool marks. They avoid scratching accessories or damaging coatings when used in doors, windows and precision hardware.
- Solves high material waste & high cost - Unlike turning, which generates significant material removal, cold heading is a near-net-shape process. Material utilization reaches over 95%.
- Solves low production efficiency & long lead times - Cold heading machines support high-speed continuous forming, producing hundreds to thousands of pieces per minute. Suitable for large-scale stable supply.
- Solves damaged material properties - Cold heading is conducted without heating, high-temperature oxidation or annealing softening. Preserves the original strength, hardness and corrosion resistance of raw materials.
- Solves cracking, deformation or incomplete fastening during riveting - Cold-headed rivets feature uniform internal structure, no porosity or looseness. Good plasticity during installation ensures no cracking, no distortion and full forming.
- Solves poor consistency & uncontrollable quality - Cold heading is a highly automated process. Products in the same batch have highly consistent hardness, dimensions and appearance.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs. Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment. Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
Our Capacity
| Main product names | Stainless steel screws, carbon steel screws, pins, rivets, nuts, eccentric nails, embedded parts, and other fasteners. |
| Business Type | Factory / Manufacture |
| Service | CNC Machining, Turning and Milling, CNC Turning, Cold heading, stamping, Assembly Service |
| Material |
1). Aluminum: AL 6061-T6, 6063, 7075-T etc 2). Stainless steel: 303,304,304L,316L,316F,630,410,420,430, etc 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14,1144,1006,1008,1010,1015,1018,10B21,1035,1065 etc. 4) Alloy steel: 5140,4135,4140,3435,5120,415,435,440 etc 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc 7). Copper, bronze, Magnesium alloy, Delrin, POM, Acrylic, PC, etc. |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing, Chrome Plating, Knurl, Laser etch Logo, etc. |
| Drawing format | STEP, STP, GIS, CAD, PDF, DWG, DXF etc or samples. |
| Tolerance | +/-0.01mm ~ +/-0.05mm |
| Surface roughness | Ra 0.1~3.2 |
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier, CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
