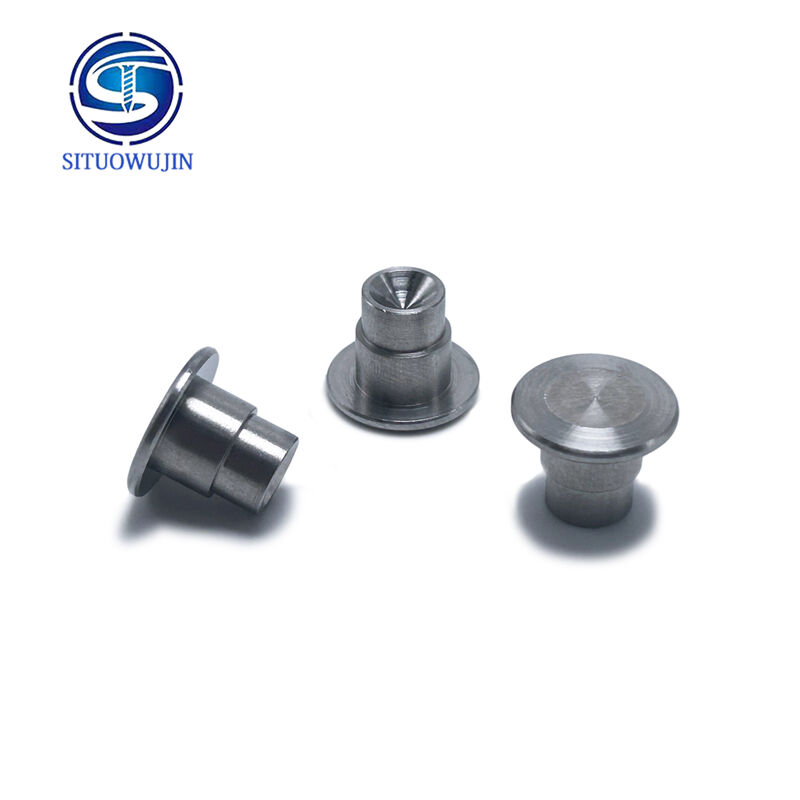

Stainless steel flat head rivets, thin head rivets, hinge sliding support components - high-quality precision hardware products

I. Core Principles: What Makes Door & Window Hardware Durable and Stable

• Corrosion and fatigue resistant (no rust, no breakage)
• Sufficient structural strength and reasonable stress distribution (no deformation, no sagging)
• Qualified surface treatment (no color fading, no peeling)
• Integrated system hardware, not assembled from miscellaneous parts (full set matching, consistent service life)

II. Material Selection: Determines Stability and Service Life

1. Handles, Transmission Rods, Lock Points, Hinge Main Body

304 Stainless Steel

• Advantages: High strength, corrosion resistant, rustproof, long service life; suitable for coastal, high‑humidity and industrial environments
• Identification: Non‑magnetic or weakly magnetic
• Applications: Hinges, lock seats, lock points, stays, friction hinges

High‑grade Die‑cast Zinc Alloy

• Advantages: High forming precision, good appearance, adequate strength
• Disadvantages: May fracture under long‑term extreme stress; not suitable for load‑bearing parts
• Applications: Handle covers, decorative caps, non‑load‑bearing gearbox covers

Iron (Cold‑rolled Steel / Galvanized)

• Advantages: Low cost
• Disadvantages: Prone to rust and corrosion, short service life; not recommended for system windows

2. Friction Hinges (Determine whether sashes will fall or wobble)

• Sheet thickness: Generally ≥ 1.2 mm – 2.0 mm for outward opening windows
• Rivets: Must be stainless steel, not iron
• Smooth track with no clearance, no obvious wobbling when closed
• Brand with salt spray test report (≥ 48 hours neutral salt spray; ≥ 200 hours recommended for system windows)

3. Sealing Gaskets (Affect durability, sound insulation and water resistance)

• High‑quality EPDM: Aging resistant, high & low temperature resistant, service life over 10 years
• Avoid: PVC gaskets (easily harden, crack and crumble)

III. How to Judge Durability: Structure, Process and Testing

1. Structural Design

• Multi‑point locking: At least 3 locking points; 4–6 points recommended for system windows

  Uniform force distribution → no deformation, no air leakage, no water penetration
• Hinges / Friction hinges: Load capacity matches sash weight

  Common ratings: 60 kg, 80 kg, 100 kg, 120 kg

  Heavy‑duty hinges required for large sashes

2. Surface Treatment

• Anodizing: Wear and scratch resistant
• Electrostatic powder coating: Strong adhesion, not easy to peel
• PVD vacuum coating: For premium handles, good texture, fingerprint resistant
• Poor quality: Thin coating, easy to scratch through, prone to rust

3. Testing Standards (Most Critical)

• Opening and closing fatigue test: ≥ 50,000 cycles (high‑quality products can reach over 100,000 cycles)
• Load‑bearing test: No sagging, no deformation
• Salt spray test: Rust resistance
• Wind pressure resistance test: Especially important for typhoon‑prone areas

IV. System Hardware vs. Ordinary Assembled Hardware (Key Differences)

System Hardware (Recommended)

• Fully designed, single brand, consistent service life
• Matching force, clearance, sealing and locking points
• Unified after‑sales service, extremely high stability
• Suitable for: System windows, thermal break aluminum windows, high‑end projects

Assembled Hardware (Not Recommended for Long‑term Use)

• Hinges from Factory A, handles from Factory B, lock points from Factory C
• Inconsistent precision, easily causes:

  Poor closing, air leakage, water penetration, hinge sagging, loose handles

V. Selection Tips

VI. Quick Inspection (Check Immediately Upon Delivery)

• Magnet test: Load‑bearing parts are non‑magnetic or weakly magnetic
• Sash shake test: No obvious looseness or sagging
• Smooth operation: No jamming, no abnormal noise
• Synchronized locking: All lock points engage at the same time
• Gaskets: Soft and elastic, not brittle

We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.

Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.

Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.

Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.

Our customers include Siemens, bo-sch, Foxconn, Panasonic Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
