Customized Flat Extended Rivets Hinge Sliding Support Precision Hardware DIN ANSI

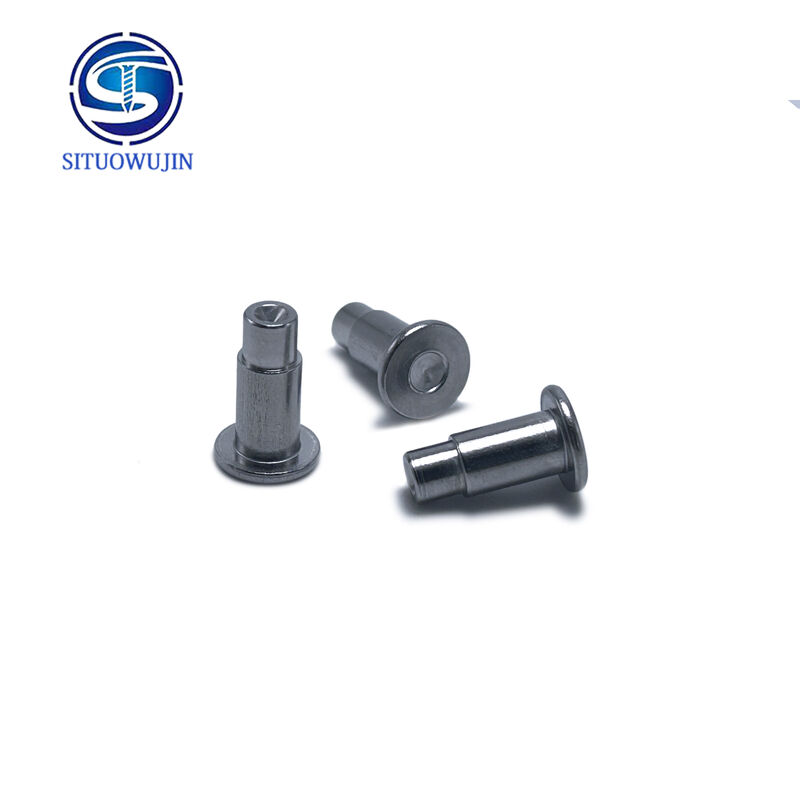

Stainless steel flat head rivets, thin head rivets, hinge sliding support components - high-quality precision hardware products

I. Common Problems and Solutions in Application

1. Deformation and Cracking of Plates During Riveting (Most Common)

• Causes
  • High hardness of stainless steel rivets leads to excessive riveting pressure, causing extrusion damage to aluminum profiles / thin steel plates.
  • Poor machining accuracy of countersink holes, mismatched hole diameters, and burrs on edges.
  • Small pressure-bearing area of flat head design results in stress concentration at the hole mouth.

• Solutions
  • Control riveting force: Use pneumatic/hydraulic rivet guns, with pressure set to fill the hole and fit the head properly, avoiding excessive impact.
  • Optimize hole machining: Match the taper of countersink holes with rivets (90°/120°), set the hole diameter 0.1–0.3 mm larger than the rivet diameter, and remove burrs.
  • Add support: Place flat backing plates under thin plates to disperse pressure.
  • Change head type: Use pan head/round head rivets to increase pressure-bearing area and reduce stress.


2. Loosening and Falling Off After Riveting

• Causes
  • Oversized holes, insufficient rivet length, or incomplete heading.
  • Repeated opening/closing of windows and doors, and wind pressure vibration cause fatigue loosening.
  • Weak torsional/shear resistance of flat heads, easy displacement under lateral force.

• Solutions
  • Select correct specifications: Rivet length = total plate thickness + 1.5 times rivet diameter (to ensure full heading).
  • Optimize process: Ensure full, crack-free and centered heading.
  • Structural reinforcement: Add flat washers/spring washers at key positions, or use blind rivets/bolts instead.


3. Electrochemical Corrosion (Aluminum Windows & Doors + Stainless Steel Rivets)

• Causes
  • Direct contact between stainless steel and aluminum profiles forms galvanic cells in humid environments, leading to rapid corrosion of aluminum.

• Solutions
  • Material isolation: Add insulating washers/nylon sleeves on contact surfaces to block electrical paths.
  • Material matching: Prioritize aluminum alloy rivets for aluminum profiles; use 316 stainless steel with passivation in coastal/high-humidity areas.
  • Sealing protection: Apply neutral silicone sealant after riveting to isolate moisture.


4. Appearance and Assembly Issues

• Problems
  • Sharp flat heads, uneven surfaces; solid rivets require double-sided operation with low efficiency.

• Solutions
  • Round and polish heads, or use pan head/oval head rivets.
  • Adopt blind rivets for mass assembly, enabling single-sided construction with high efficiency.


5. Fatigue Fracture in Long-Term Use

• Causes
  • Alternating stress from repeated opening/closing and wind pressure induces cracks at stress concentration points.

• Solutions
  • Select tough 304/316 austenitic stainless steel and avoid martensitic stainless steel.
  • Distribute stress: Arrange multiple rivets and add stiffeners to reduce load per rivet.

II. More Suitable Hardware Selection for Window and Door Systems (Alternative/Optimized Solutions)

2. Systematic Selection of Core Window & Door Hardware

• Hinges
  • Casement/inward tilting windows: 304 stainless steel load-bearing hinges with load capacity ≥30kg, passing 100,000 opening/closing tests.
  • Sliding windows: Stainless steel bearing pulleys + nylon wheel surfaces for quiet operation, wear resistance and corrosion resistance.

• Locking Systems
  • Casement windows: Multi-point locks (2–4 lock points) + stainless steel transmission rods for uniform stress, anti-theft and good sealing.
  • Sliding windows: Hook locks/central locks with sealing wool strips to improve air and water tightness.

• Sealing and Auxiliary Parts
  • Sealing strips: EPDM for aging resistance, high and low temperature resistance, service life 5–8 years.
  • Heat/insulation: Nylon heat insulation strips and insulating washers to block thermal bridges and electrochemical corrosion.


3. Core Selection Principles

1. Material matching first: Aluminum profiles with aluminum/nylon fasteners; steel with stainless steel; avoid direct contact between dissimilar metals.
2. Function adaptation: High strength and toughness for load-bearing parts; aesthetic and flat for decorative parts; detachable for easy maintenance.
3. Environmental adaptation: 316 stainless steel + passivation/sealing for coastal/humid areas; 304 stainless steel for ordinary environments.
4. Systematic matching: Prioritize specialized window and door hardware systems (hinges + locks + transmission + sealing) for better compatibility and stability.

III. Summary and Action Recommendations

• Stainless steel flat head solid rivets are suitable for static, low-load parts with high flatness requirements; not recommended for frequent opening/closing, aluminum profiles or humid environments.
• Prioritize material-matched blind rivets/special bolts as alternatives, and adopt multi-point connection + systematic hardware at key positions to balance strength, corrosion resistance, durability and maintainability.

We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.

Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.

Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.

Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.

Our customers include Siemens, bo-sch, Foxconn, Panasonic Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
