M4 Screws Flat Head Multi Step Pin Shaft CNC Machining Small Parts
|
M4 Screws Flat Head Multi Step Pin Shaft CNC Machining Small Parts
| Place of Origin | GuangdongDongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-00011 |
Product Details
Material:
SUS304 / DIN 2462
Category:
Stainless Steel Sleeve
Surface Treatment:
Passivation
Processing Technology:
CNC Turning
Sample Period:
10 To 15 Days
Precision:
Min0.001
Head Shape:
Customized
Highlight:
Stainless steel M4 screws flat head
,pin shaft cnc machining small parts
,cnc machining small parts DIN2462
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description

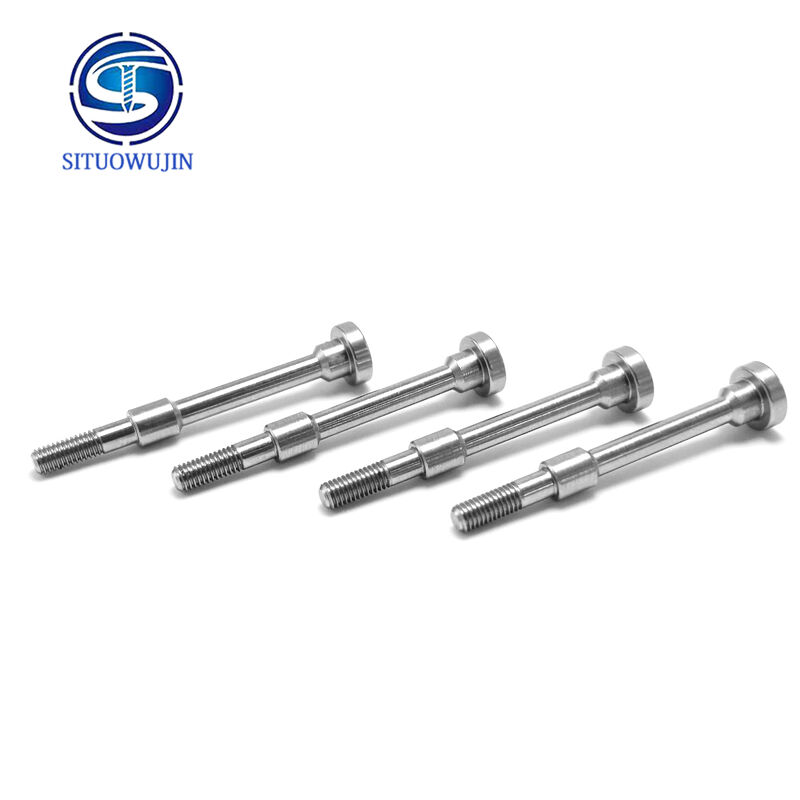

Stainless steel flat-head multi-step pin shaft M4 screws CNC machining
I. Technical Classification System of Machined Threads
(I) Classification by Functional Orientation
- Fastening Threads (Basic Type) : Triangular thread profile, mainly including Metric (M), Whitworth (W), and Unified National (UNC/UNF) standards. Thread angle 55°/60°, pitch diameter tolerance IT8-IT10, pitch accuracy ±0.02mm. Compatible with turning, tapping, and rolling processes, with wide material adaptability.
- Transmission Threads (High-Precision Type) : Core types include Trapezoidal (Tr), Buttress (B), and Ball Screw threads. Ball screws feature transmission efficiency ≥90% and positioning accuracy ±0.001mm. Thread angle deviation must be ≤±0.5°, relying on precision turning and grinding processes, suitable for high-strength alloy steels.
- Sealing Threads (Leak-Proof Type) : 1:16 taper design, with BSPP/BSPT (R/Rc) and NPTF as mainstream standards. Taper tolerance ≤±0.005mm/m, sealing surface roughness Ra≤1.6μm. Requires special sealing materials; high-pressure scenarios need pressure testing ≥30MPa with no leakage.
- Special Threads (Customized Type) : Including aerospace MJ threads and square threads. Require customized tools and fixtures, dependent on precision testing equipment.
(II) Technical Adaptability of Processing Processes
| Processing Process | Core Parameters | Suitable Threads | Advantages | Limitations |
| Turning | Speed 500-3000rpm, Feed rate 0.1-1.0mm/r | All types (including non-standard) | Flexible, high efficiency for single-piece | High cost for mass production, skill-dependent |
| Tapping | Bottom hole tolerance | Small-size fastening threads (M1-M20) | High mass production efficiency, compatible with automation |
Only for standard threads, easy tool breakage in deep holes
|
| Rolling/Thread Rolling | Rolling force 5-50kN, Preformed diameter tolerance ±0.03mm | Fastening coarse-pitch threads (M3-M30) | Chipless forming, strength increased by 20-30% |
Only for ductile materials, poor adaptability to non-standard threads
|
| Thread Grinding | Grinding wheel speed 3000-6000rpm, Grinding allowance 0.05-0.1mm | High-precision transmission/sealing threads | Precision IT4-IT6, excellent surface quality |
Long processing cycle, high equipment cost
|
II. Core Technical Control Points
(I) Preprocessing Controls
- Clamping concentricity ≤0.01mm, use centering fixtures;
- Match special tools with cutting edge roughness Ra≤0.8μmQuench and temper hard materials, remove oxide layers from soft materials.
(II) Processing Process Controls
- Cutting parameters: High speed (500-3000rpm) and low feed rate for soft materials; low speed (300-1000rpm) and medium feed rate for hard materials; coolant pressure ≥0.3MPa for difficult-to-machine materials;
- Dimensional monitoring: Inspect pitch diameter, pitch, and thread angle for first article; sample inspection every 50 pieces during mass production;
- Chip removal and cooling: High-pressure cooling (flow rate ≥10L/min) for internal threads; bottom hole depth of blind holes exceeds effective length by 2-3 times the pitch.
(III) Post-Processing and Inspection Controls
- Surface treatment: Galvanizing (8-12μm) / nitriding (0.1-0.3mm) for corrosive environments; Teflon coating for high-temperature scenarios;
- Precision inspection: Use go/no-go gauges for general threads; control cumulative pitch error ≤0.01mm/m for high-precision threads;
- Fit verification: Pressure test for sealing threads; no jamming and noise ≤75dB during no-load operation for transmission threads.
(IV) Special Scenario Controls
- Thin-walled parts: Rough machining - stress relief - finish machining, reduce feed rate by 30%;
- Multi-start threads: Lead accuracy ≤0.02mm;
- Large-size threads (>50mm): Turn-mill composite machining, cutting depth ≤0.2mm per pass.
We can comply with the following requirements.
| Head shape classification: | Pan Head,Button Head,Flat Head / Countersunk Head,Oval Countersunk Head,Hex Head,Socket Head Cap Screw,Square Head,Set Screw / Headless Screw,Truss Head,Eye Head,Flange Head,hillips Pan Head,Phillips Countersunk Head |
| Classification of processing techniques: | CNC Lathe,Machining Center(MC),Boring Machine,Grinding Machine,Broaching Machine,Hobbing Machine,EDM Sinker Machine,Wire EDM Machine,Forging Press,CNC Punch Press |
| Product technology, form, function, precision, material and application: | Turned Parts,Milled Parts,Drilled Parts,Bored Parts,Ground Parts,Broached Parts,Gear Components,Non-Traditional Machined Parts,Mechanical Components/Parts,Precision Hardware,Structural Components,Transmission Parts,Fasteners,Custom Machined Parts,Sheet Metal Fabrications,Rough Machined Parts,Semi-Finished Machined Parts,Finished Machined Parts,Ultra-Finished Machined Parts,Mass-Produced Machined Parts,Low-Volume Custom Machined Parts,Metal Machined Parts,Plastic Machined Parts,Aerospace Components,Automotive Parts,Medical Machined Components |
| Surface treatment requirements: | Surface Cleaning & Finishing,Chemical Conversion Coating,Electrochemical Treatments,Surface Coating,Surface Modification (Heat Treatment/Diffusion),Mechanical Strengthening,Degreasing,Pickling,Mechanical Polishing,Sand Blasting,Shot Blasting,Barrel Finishing / Tumbling,Brushing,Phosphating,Passivation,Chromating,Blackening / Bluing,Chemical Oxidation (for Aluminum),Electroplating,Electroless Plating (Auto - Catalytic Plating),Anodizing,Electropolishing,Powder Coating,Thermal Spraying,Physical Vapor Deposition (PVD),Chemical Vapor Deposition (CVD),Organic Coating,Carburizing,Nitriding,Carbonitriding,Laser Hardening,Roller Burnishing, |
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include Siemens, bo-sch, Foxconn, Panasonic Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
| OUR CAPACITY | ||||
| Main product names: | Stainless steel screws, carbon steel screws, pins, rivets, nuts, | |||
| eccentric nails, embedded parts, and other fasteners. | ||||
| Business Type | Factory / Maufacture | |||
| Service | CNC Machining | |||
| Turning and Milling | ||||
| CNC Turning | ||||
| Cold heading | ||||
| stamping | ||||
| Assembly Service | ||||
| Material | 1). Aluminum: AL 6061-T6, 6063, 7075-T etc | |||
| 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc | ||||
| 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. | ||||
| 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc | ||||
| 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc | ||||
| 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc | ||||
| 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. | ||||
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, | |||
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, | ||||
| electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), | ||||
| Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. | ||||
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |||
| Tolerance | +/-0.01mm ~ +/-0.05mm | |||
| Surface roughness | Ra 0.1~3.2 | |||
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM | |||
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | ||||
