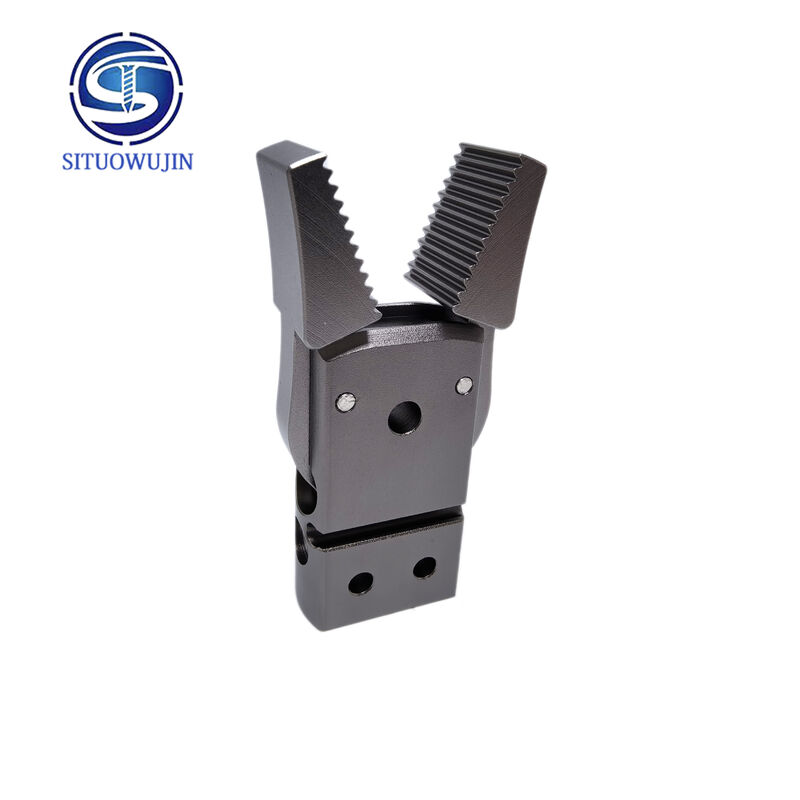

Tooling Fixtures Automated Chucks 0.001mm SS304 CNC Machined Precision Parts

• Boiler & heating chambers: Made of 304/316 stainless steel and brass. Hydraulic/pneumatic fixtures achieve positioning accuracy ≤0.002 mm, ensuring flatness and concentricity of sealing surfaces for high-pressure (15-20 bar) extraction.
• Brew heads, portafilters & valve bodies: Custom pneumatic jaws + locating pin fixtures are adopted for special-shaped curved and multi-step structures to avoid clamping deformation and guarantee precision of water hole positions and sealing grooves.
• Pump bodies, solenoid valves & fasteners: Multi-station rotary fixtures complete multi-surface machining in one clamping, improving batch consistency for tiny precision components.
• Shell & sheet metal parts: Pneumatic flexible fixtures with food-grade rubber protection are used for grinding and welding of special-shaped shells, preventing surface scratches on automated production lines.

• Quick-change positioning fixtures cooperate with manipulators for precise assembly of heating components, waterway modules and electronic parts, with repeated assembly accuracy of ±0.05 mm.
• Special suction/clamping fixtures match delta robots for high-speed sorting and packaging of coffee capsules and cups, realizing fully automated production.

• Loading, unloading & handling: 4-axis/6-axis manipulators complete picking and transferring of blanks and finished products in die-casting, CNC and stamping processes, boosting efficiency by 2-3 times with 24-hour continuous operation.
• Precision assembly: Collaborative robots (repeated positioning accuracy ±0.02 mm) assemble brew heads, boilers and pump components precisely to ensure consistent sealing and performance.
• Surface treatment: Robots matched with grinding/polishing fixtures process coffee machine shells and portafilters automatically, achieving surface roughness Ra≤0.8 μm with better consistency than manual work.
• Inspection & packaging: Vision-guided manipulators conduct dimensional and air tightness testing, and high-speed sorting & packaging for coffee capsules.

• Single/double-arm collaborative robots simulate hand-brewing and latte art movements (repeated positioning accuracy ±0.1 mm), realizing 24-hour unmanned operation and cutting operating costs by 60%.
• Equipped with 6-dimensional force sensors, they achieve 0.1N-level force control, adapting to different cup types and accurate control of extraction pressure and water flow.

• Processing technologies: CNC turning-milling compound, 5-axis linkage, precision grinding, tapping and polishing.
• Applicable materials: Food-grade 304/316L stainless steel, brass, aluminum alloy, titanium alloy.
• Precision standards: Dimensional tolerance ±0.005 mm, geometric tolerance ≤0.005 mm, surface roughness Ra≤0.4 μm, suitable for high-pressure sealing & food-contact coffee machine components.
• Typical products: Boiler chambers, brew heads, portafilters, valve bodies, pump components, temperature sensor bases, fasteners and sheet metal shells.

Design customized hydraulic/pneumatic/mechanical fixtures for special-shaped and thin-walled coffee machine parts, solving clamping deformation problems with positioning accuracy ≤0.002 mm. Modular quick-change fixtures adapt to automated mass production.

Full-process services: Drawing design -> material selection -> precision machining -> surface treatment (anodizing, passivation, mirror polishing) -> quality testing. Support OEM/ODM customization.

Equipped with 2D imagers, CMM and air tightness testing equipment to meet food-grade certification and performance requirements.

1. Demand communication: Provide drawings/samples, confirm material, precision, surface treatment and order quantity.
2. Solution design: Custom machining process + dedicated fixture scheme, evaluate lead time and cost.
3. Sample production & confirmation: High-precision prototype making for customer approval.
4. Mass production & delivery: Full-inspection before shipment, professional after-sales technical support provided.

We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.

Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.

Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.

Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.

Our customers include bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
