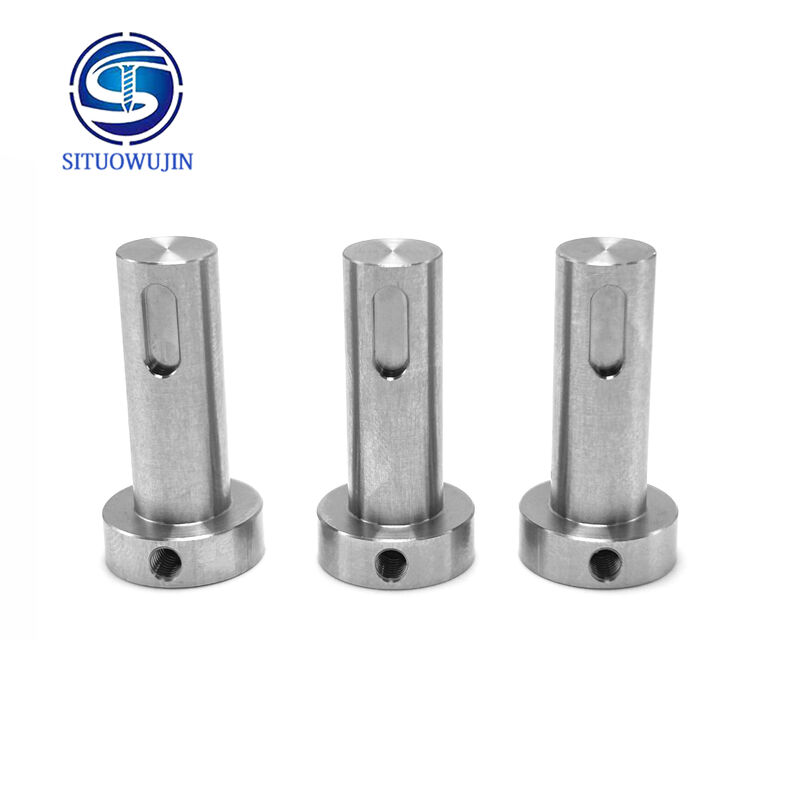

Optical Base Micro Support Rod, CNC Precision Optical Supporting Component
| Place of Origin | GuangdongDongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-000021 |
Optical Base Micro Support Rod, CNC Precision Optical Supporting Component
This micro base is integrally CNC machined from RoHS compliant stainless steel. Designed with side hole positioning structure, it features accurate positioning and firm assembly. It is widely used for fixation and fine adjustment of various optical instruments, serving as a high-precision supporting component for optical equipment.
Application Scenarios & Working Requirements
Laboratory Optical Testing Instruments
Widely applied in optical inspection, spectral analysis and laboratory optical devices. It requires strict geometric tolerance and high positioning accuracy of side holes to prevent displacement during long-term operation. The RoHS compliant material ensures no substance precipitation that may affect optical testing results.
Industrial Machine Vision Equipment
Suitable for machine vision, visual inspection and automatic imaging systems. With slight vibration during equipment operation, the base needs high structural rigidity to keep position after locking. The side holes maintain uniform fitting clearance to support multi-angle precise adjustment and stable imaging.
Precision Optical Lens Modules
Used for assembly of camera lenses, optical lenses and imaging modules. It demands superior surface finish and consistent dimensions. The compact structure fits limited installation space, and the positioning mechanism works smoothly without looseness after repeated adjustment.
Educational Optical Teaching Equipment
Applied to optical teaching and experimental demonstration devices in educational institutions. It focuses on good versatility and easy installation. The material is corrosion resistant and rust proof, suitable for normal indoor temperature and humidity for long-term repeated use.
Machining & Customization
SITUO Hardware specializes in CNC precision machining for hardware parts. We provide customized solutions for optical positioning and adjusting components to match various positioning devices with different structures and dimensions.
Multiple material options are available, including stainless steel, carbon steel, brass and engineering plastic, to meet different requirements on working environment, precision and cost.
Technical Advantages
Equipped with mature CNC machining technology and strict quality control, we guarantee stable precision and consistent quality of products. Our professional manufacturing capability helps clients enhance competitiveness in the market.
| Core Points | Solutions (Our Process & Products) |
|---|---|
| Low positioning accuracy, optical path deviation and inaccurate test data | Adopt CNC precision machining to strictly control geometric tolerance, with standard side hole positioning structure to ensure uniform assembly clearance and stable long-term positioning |
| Loosening and shifting under vibration, poor equipment operation stability | Adopt stainless steel substrate to improve structural rigidity, one-piece CNC molding to ensure full contact of the surface, enhance anti-vibration performance, and adapt to industrial vibration scenarios |
| Poor environmental resistance, easy to rust and precipitate impurities to contaminate the optical path | Standard RoHS compliant stainless steel, with rust and oxidation resistance, no harmful substance precipitation. Custom surface treatment is available to adapt to multi-scenario environments |
| Inflexible adjustment, low efficiency of optical path calibration and focusing | Reserve adjustable assembly clearance of side holes to support micro attitude adjustment; provide OEM/ODM customization for hole position, size and installation form according to equipment structure |
| Poor specification compatibility, low part interchangeability and equipment scalability | Implement standardized machining benchmarks with good universality; support multi-specification and multi-material customization (carbon steel, stainless steel, brass, plastic) to adapt to all types of instruments and meters |
| Poor consistency of batch products, high difficulty of mass production quality control | Full-process CNC automatic production with unified process parameters to ensure highly consistent size and precision of mass-produced products |
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.01. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
| OUR CAPACITY | ||||
| Main product names: | Stainless steel screws, carbon steel screws, pins, rivets, nuts, | |||
| eccentric nails, embedded parts, and other fasteners. | ||||
| Business Type | Factory / Maufacture | |||
| Service | CNC Machining | |||
| Turning and Milling | ||||
| CNC Turning | ||||
| Cold heading | ||||
| stamping | ||||
| Assembly Service | ||||
| Material | 1). Aluminum: AL 6061-T6, 6063, 7075-T etc | |||
| 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc | ||||
| 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. | ||||
| 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc | ||||
| 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc | ||||
| 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc | ||||
| 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. | ||||
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, | |||
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, | ||||
| electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), | ||||
| Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. | ||||
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |||
| Tolerance | +/-0.01mm ~ +/-0.05mm | |||
| Surface roughness | Ra 0.1~3.2 | |||
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM | |||
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | ||||
