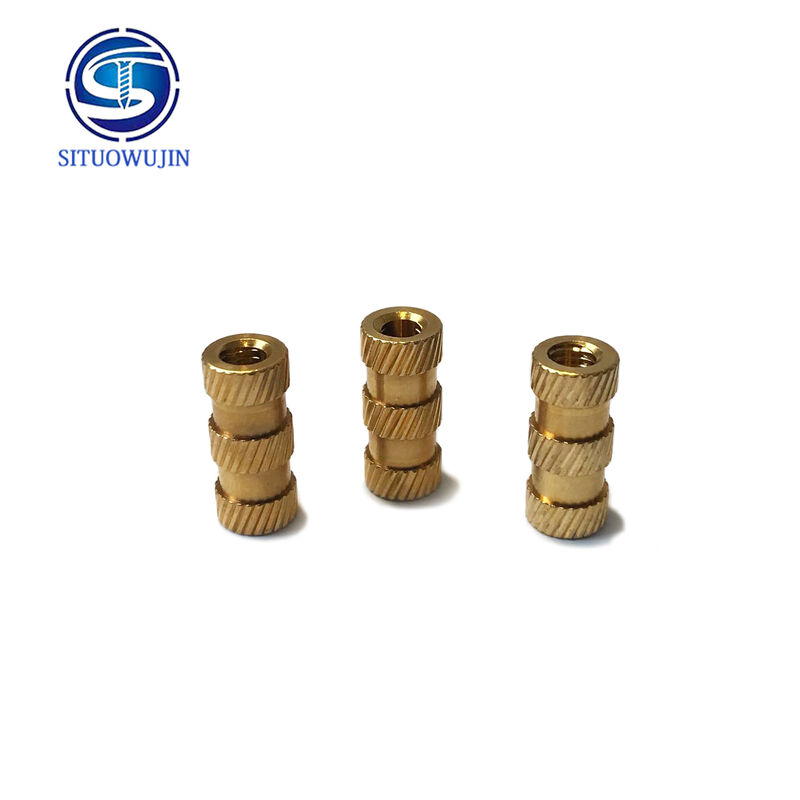

Brass Insert Nut, Precision Embedded Brass Inserts for Plastic Injection Molding
|
Brass Insert Nut, Precision Embedded Brass Inserts for Plastic Injection Molding
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST2026-500013 |
Product Details
Material:
Copper
Category:
Nut
Surface Treatment:
Customized
Sample Period:
10 To 15 Days
Precision:
Min0.001
Head Shape:
Customized
Products Drawing Format:
2D/(PDF/CAD)3D(IGES/STEP)
Service:
Customised
Corrosionresistance:
High
Quality Control:
100% Inspection
Threadsize:
M2.5M3M3.5M4M6M8
Highlight:
Brass insert nut for plastic molding
,Precision embedded brass inserts
,CNC brass nuts with warranty
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description
-
Brass Insert Nut, Precision Embedded Brass Inserts for Plastic Injection Molding
Product Overview
This brass insert nut is a precision embedded fastener specially designed for plastic injection molding. Manufactured by CNC turning, the outer surface is made with anti-twist knurling. When precast into plastic housings, it forms a firm combination with the plastic base. It is widely used in 3C electronics, AI smart equipment, sensor shells, household appliances and plastic structural parts. With stable thread precision and excellent thermal conductivity, it effectively prevents nut rotation, pull-out and loosening during long-term equipment operation.Core Processing Advantages
Threads pass 100% go and no-go gauge inspection
All internal threads are precisely machined with standard tooth profile and uniform pitch. The go gauge can be fully screwed in smoothly without jamming, while the no-go gauge meets the tolerance requirement. No bad threads or burrs remain. Screws fit tightly during assembly without slipping, which greatly reduces the rework rate of electronic finished products and adapts to automated assembly production lines.Stable dimensional tolerance with high consistency
One-time clamping CNC machining strictly controls the outer diameter, length and concentricity. The size deviation of the same batch is kept within a small range. The embedding depth stays consistent during injection molding, so there will be no uneven protrusion or depression on the plastic surface. Mass interchangeability is guaranteed without manual sorting.Burr-free finish to protect plastic and electronic components
After precision deburring, all thread openings, end faces and knurl edges have no sharp flash. It will not cut plastic materials during molding, nor scratch PCB boards, wires and sealing parts during assembly, avoiding damage to precision electronic elements.Good material performance of solid brass
Solid brass material features high hardness, anti-torsion property and outstanding thermal conductivity. It can effectively conduct heat generated by chips and circuit boards inside the equipment. Meanwhile, brass resists oxidation and corrosion in closed humid environments, keeping stable connection performance for a long time.Main Application Scenarios
AI intelligent equipment plastic shell
Suitable for inspection robots, visual testing modules and edge control cabinet housings. Knurling locks tightly with plastic to avoid nut spinning under continuous vibration, ensuring accurate positioning of sensors.3C consumer electronics injection molding
Applied to smart cameras, portable terminals and small electrical casings. Compact size saves internal space, and brass material prevents rust and improves heat dissipation.Plastic brackets and testing jigs
Embedded fixing for plastic structural parts of automation tooling. High pullout resistance keeps the connection tight under repeated movement.Solutions to Common Problems
Problem 1: Nuts rotate or pull out after being embedded in plastic
Solution: The outer knurling increases biting force with plastic. Torsion and pullout resistance are significantly improved to avoid displacement caused by vibration.Problem 2: Poor thread accuracy leads to sliding teeth during assembly
Solution: CNC precision thread turning plus full gauge testing ensures standard meshing and stable locking force.Problem 3: Sharp burrs pierce plastic shells and scratch circuit components
Solution: Full deburring treatment makes all surfaces smooth, protecting plastic appearance and precision electronic parts.Custom Service
SITUO Hardware specializes in CNC brass insert nuts for injection molding. We customize thread specifications from M2 to M6, total length, outer diameter and knurl patterns according to customer drawings. Solid brass raw material is adopted, supported by three-level quality control including dimension inspection, thread gauge testing and appearance inspection. We provide high-tolerance, burr-free embedded copper inserts for plastic molding of electronic and intelligent hardware.We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
OUR CAPACITY Main product names: Stainless steel screws, carbon steel screws, pins, rivets, nuts, eccentric nails, embedded parts, and other fasteners. Business Type Factory / Maufacture Service CNC Machining Turning and Milling CNC Turning Cold heading stamping Assembly Service Material 1). Aluminum: AL 6061-T6, 6063, 7075-T etc 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. Finish Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. Drawing format STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. Tolerance +/-0.01mm ~ +/-0.05mm Surface roughness Ra 0.1~3.2 Inspection Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge
