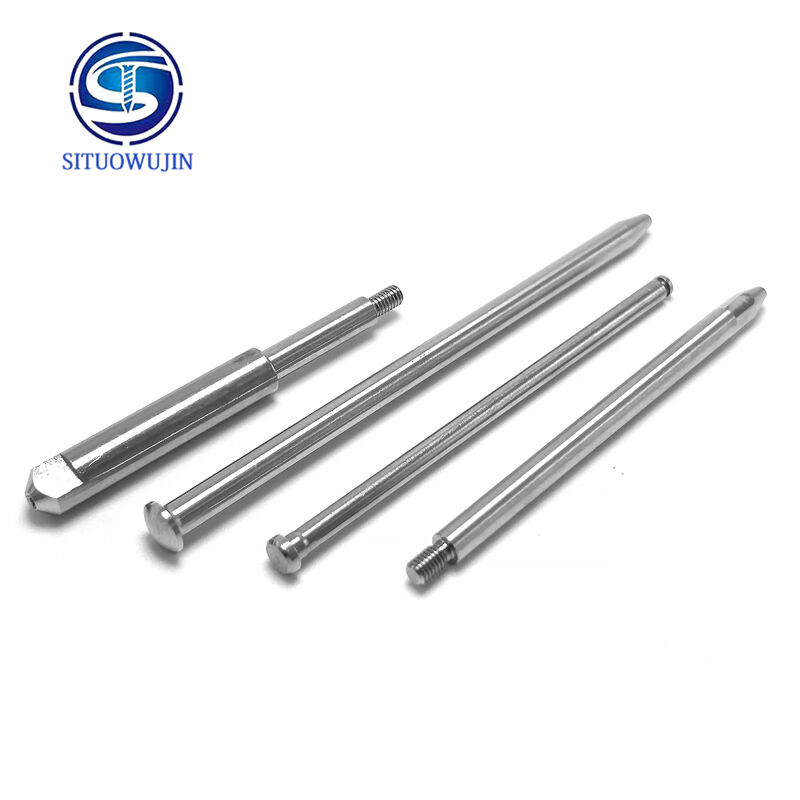

Special-Shaped Shaft Pins, Precision CNC Machined Mechanical Hardware Components
|
Special-Shaped Shaft Pins, Precision CNC Machined Mechanical Hardware Components
| Place of Origin | Dongguan Guangdong |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-000031 |
Product Details
Shape Model:
CNC Machining Parts
Qc Control:
100% Inspection On Critical Dimension
Finish:
Passivation
Rugosity:
Ra0.8
Service:
OEM/ODM/Customized/Design
Process:
Turning/Milling/Grinding/Machining
Item Name:
Square Round Head Pin
Item:
Industrial Precision Components
Keyword:
Custom CNC Machining Parts
Corrosionresistance:
High
Precision:
Min0.01
Drawing Format:
Dwg / .igs / .stp / X_t.,JPEG,
Mounting Type:
Pin
Tolerance:
±0.01mm
Hardness:
HRC 35
Weight:
200g
Equipment:
CNC Lathe Machine,Auto Lathe Machine
Material:
Stainless Steel
Precision Level:
High Precision
Color:
Silver
Seawater Pressure:
≥20 Bar
Manufacturingprocess:
CNC Machining
Logo:
Customized
Size Tolerance:
±0.05
Application:
Machining, Milling, Drilling
Highlight:
CNC machined shaft pins
,precision mechanical hardware components
,special-shaped CNC hardware parts
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description
Special-Shaped Shaft Pins, Precision CNC Machined Mechanical Hardware Components
1. Product Overview
Special-Shaped Shaft Pins are high-precision non-standard mechanical pin components with customized irregular structures, including stepped, flat, slotted, eccentric and multi-profile designs. Manufactured from premium stainless steel, carbon steel, aluminum alloy and brass via integrated CNC turning and milling processes, these custom shaft pins feature tight tolerance, excellent concentricity and smooth burr-free surface. Different from standard cylindrical pins, they are specially engineered for non-standard positioning, limiting, guiding and structural supporting of automated equipment, precision tooling and mechanical modules. Customization based on drawings and samples is available, supporting prototype sampling and mass production.
2. Core Product Advantages
1. Custom Special Profile for Non-Standard Assembly
Custom irregular integrated structures solve assembly problems that standard pins cannot adapt to. Various complex shapes such as step shoulders, flat cuts, slots, counterbores and eccentric profiles are available. One-piece forming avoids secondary assembly gaps, providing higher structural stability and perfectly matching personalized assembly requirements of special mechanical equipment.
2. High-Precision CNC Machining & Excellent Interchangeability
Multi-process CNC precision machining strictly controls outer diameter, length, step size, flat thickness and concentricity with micron-level accuracy. Smooth surface and uniform fitting clearance ensure accurate positioning and smooth assembly. Products maintain high consistency and interchangeability in batches, retaining stable precision after repeated disassembly and long-term operation.
3. Multiple Material Options for Diverse Industrial Conditions
Matched material solutions for different working scenarios: high-rigidity carbon steel for conventional load-bearing and limiting structures; rust-proof stainless steel for humid, oily and harsh environments; lightweight aluminum alloy for precision light-duty mechanical modules; non-magnetic brass for high-precision testing equipment. Optional zinc plating, nickel plating, black oxide and polishing treatments enhance wear resistance and durability.
4. Solid Integrated Structure, Wear-Resistant & Stable
One-piece solid machining forms dense and uniform internal structure with balanced strength and toughness. The shaft pins deliver outstanding friction resistance, impact resistance and fatigue resistance. They resist wear, deformation and loosening under continuous vibration and high-frequency operation, ensuring stable mechanical positioning and transmission performance.
5. Flexible Full-Customization Service
No standard size restrictions. All profiles and dimensions can be customized according to customer drawings, samples and equipment parameters. We support small-batch R&D sampling, medium-batch equipment matching and large-batch mass production, fully adapting to mechanical renovation, tooling customization and non-standard equipment upgrading demands.
3. Application Scenarios
✅ Non-standard special-shaped positioning and limiting shaft pins for automated equipment
✅ Custom guide pin components for precision tooling jigs and testing fixtures
✅ High-precision special-profile pins for mechanical transmission and assembly modules
✅ Non-standard machined shaft parts for precision instruments and light machinery
✅ Custom irregular mechanical hardware for industrial equipment renovation
4. Quality Assurance & Service
All special-shaped shaft pins undergo strict multi-inspection procedures before delivery, including full dimensional tolerance testing, concentricity calibration, burr finishing and assembly fitting verification. Standard parts support fast shipment, while one-stop non-standard CNC custom machining services are provided. We supply high-precision, wear-resistant and well-adapted custom shaft pin hardware for global precision machinery, automation and tooling manufacturing industries.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
| OUR CAPACITY | ||||
| Main product names: | Stainless steel screws, carbon steel screws, pins, rivets, nuts, | |||
| eccentric nails, embedded parts, and other fasteners. | ||||
| Business Type | Factory / Maufacture | |||
| Service | CNC Machining | |||
| Turning and Milling | ||||
| CNC Turning | ||||
| Cold heading | ||||
| stamping | ||||
| Assembly Service | ||||
| Material | 1). Aluminum: AL 6061-T6, 6063, 7075-T etc | |||
| 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc | ||||
| 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. | ||||
| 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc | ||||
| 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc | ||||
| 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc | ||||
| 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. | ||||
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, | |||
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, | ||||
| electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), | ||||
| Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. | ||||
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |||
| Tolerance | +/-0.01mm ~ +/-0.05mm | |||
| Surface roughness | Ra 0.1~3.2 | |||
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM | |||
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | ||||
