High Tolerance Non-Standard CNC Cylindrical Pin, Custom Precision Tool Shaft Pin
|
High Tolerance Non-Standard CNC Cylindrical Pin, Custom Precision Tool Shaft Pin
| Place of Origin | Dongguan Guangdong |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-000030 |
Product Details
Logo:
Customized
Rugosity:
Ra0.8
Manufacturingprocess:
CNC Machining
Equipment:
CNC Lathe Machine,Auto Lathe Machine
Item Name:
Pressure Gauge Inline Fitting
Hardness:
HRC 35
Drawing Format:
Dwg / .igs / .stp / X_t.,JPEG,
Keyword:
Custom CNC Machining Parts
Shape Model:
CNC Machining Parts
Precision Level:
High Precision
Service:
OEM/ODM/Customized/Design
Mounting Type:
Pin
Weight:
200g
Tolerance:
±0.01mm
Item:
Industrial Precision Components
Corrosionresistance:
High
Finish:
Passivation
Size Tolerance:
±0.05
Process:
Turning/Milling/Grinding/Machining
Material:
Stainless Steel
Application:
Machining, Milling, Drilling
Color:
Silver
Seawater Pressure:
≥20 Bar
Qc Control:
100% Inspection On Critical Dimension
Precision:
Min0.01
Highlight:
High tolerance CNC cylindrical pin
,Custom precision tool shaft pin
,Non-standard CNC hardware parts
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description
High Tolerance Non-Standard CNC Cylindrical Pin, Custom Precision Tool Shaft Pin
Product Overview

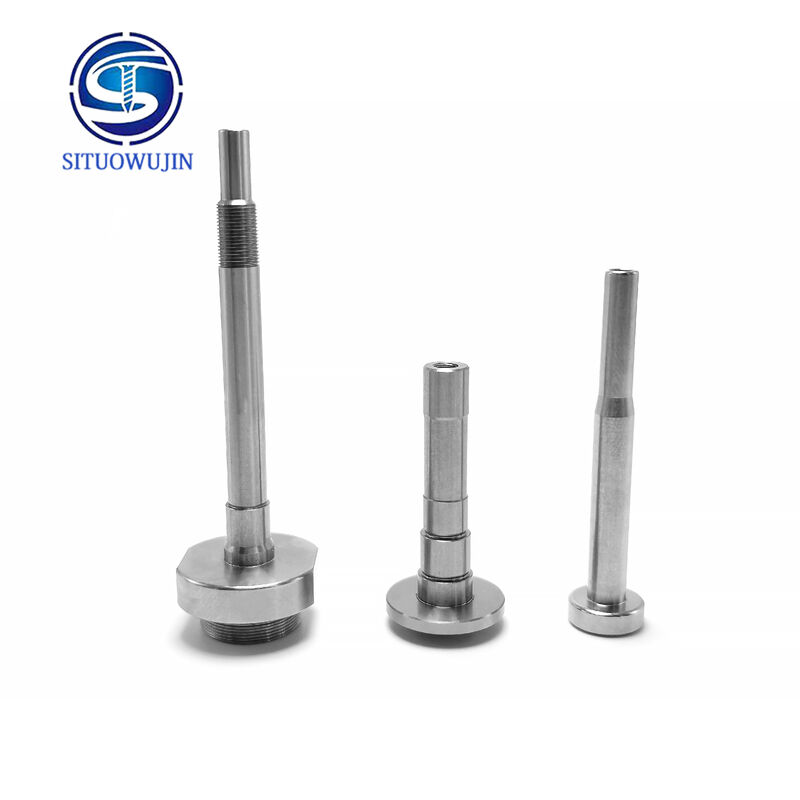

High Tolerance Non-Standard CNC Cylindrical Pin is a custom-made precision tool shaft pin designed for special industrial assembly and positioning scenarios. Different from standard size pins, this series of shaft pins are fully customized according to customer drawings and samples. Adopting professional CNC precision machining technology, the product features ultra-high dimensional accuracy, smooth surface and stable structural performance. It is mainly used for precise positioning, limiting, fixing and calibration of tooling fixtures, automation equipment and precision machinery, solving the matching problems of non-standard structural assembly.
Key Features
Strict High Tolerance Control
Processed by high-precision CNC equipment, the cylindrical pin achieves extremely strict tolerance accuracy. The pin body boasts excellent straightness, roundness and concentricity, with no dimensional deviation. It ensures zero-gap precise fitting during equipment assembly, effectively improving the overall assembly precision and stability of mechanical structures.
Full Non-Standard Customization
Support all kinds of personalized non-standard customization, including special diameter, length, step structure, groove position, flat position and special-shaped shaft body. No limited by standard specifications, we can customize exclusive precision shaft pins according to different equipment structure and assembly requirements to meet diverse industrial matching needs.
Premium Material & Stable Performance
Optional with multiple high-quality metal materials such as stainless steel, carbon steel and alloy steel. The finished shaft pin has high hardness, good wear resistance and compression resistance. It is not easy to deform or wear after long-term repeated plugging and positioning work, maintaining stable precision in long-cycle industrial use.
Fine Machining & Smooth Surface
After precision turning, finishing and deburring treatment, the pin surface is smooth and delicate without burrs and scratches. The assembly is smooth and unobstructed, with good interchangeability and compatibility, suitable for frequent disassembly and assembly of precision equipment.
Customizable Surface Treatment
To adapt to different working environments, we support multiple surface processing technologies, including black oxide, nickel plating, Dacromet coating, polishing and sandblasting. These treatments effectively enhance anti-rust, anti-corrosion and wear resistance of the shaft pins, extending the service life of the parts.
Application Scenarios
✅ Precision tooling fixture non-standard positioning pins
✅ Automation equipment custom limit shaft pins
✅ Precision mechanical equipment calibration and fixing pins
✅ Medical, electronic and instrument precision assembly parts
✅ Industrial special-shaped non-standard CNC machining hardware
Quality & Service Guarantee
We provide one-stop customized services from drawing confirmation, prototype processing to batch mass production. All non-standard CNC cylindrical pins undergo strict dimensional inspection, tolerance testing and appearance inspection before delivery. With reliable precision, stable quality and flexible customization, our products are widely recognized in precision machinery manufacturing and tooling supporting industries.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
| OUR CAPACITY | ||||
| Main product names: | Stainless steel screws, carbon steel screws, pins, rivets, nuts, | |||
| eccentric nails, embedded parts, and other fasteners. | ||||
| Business Type | Factory / Maufacture | |||
| Service | CNC Machining | |||
| Turning and Milling | ||||
| CNC Turning | ||||
| Cold heading | ||||
| stamping | ||||
| Assembly Service | ||||
| Material | 1). Aluminum: AL 6061-T6, 6063, 7075-T etc | |||
| 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc | ||||
| 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. | ||||
| 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc | ||||
| 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc | ||||
| 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc | ||||
| 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. | ||||
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, | |||
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, | ||||
| electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), | ||||
| Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. | ||||
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |||
| Tolerance | +/-0.01mm ~ +/-0.05mm | |||
| Surface roughness | Ra 0.1~3.2 | |||
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM | |||
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | ||||
