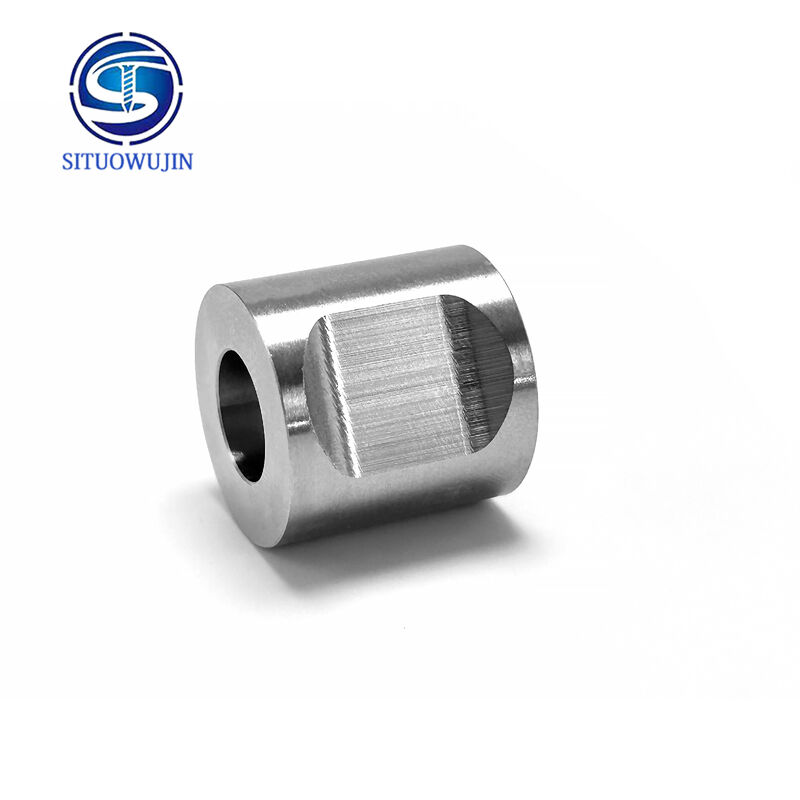

CNC Pressure Gauge Inline Fitting, Instrument Connection Pipe Fitting
|
CNC Pressure Gauge Inline Fitting, Instrument Connection Pipe Fitting
| Place of Origin | GuangdongDongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-000019 |
Product Details
Item Name:
Pressure Gauge Inline Fitting
Logo:
Customized
Surface:
Passivation
Shape Model:
CNC Machining Parts
Color:
Silver
Precision Level:
High Precision
Productname:
CNC Hardware Parts
Corrosionresistance:
Yes
Drawing Format:
Dwg / .igs / .stp / X_t.,JPEG,
Qc Control:
100% Inspection On Critical Dimension
Keyword:
Rapid Prototyping CNC
Durability:
High
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS
Product Description
CNC Pressure Gauge Inline Fitting, Instrument Connection Pipe Fitting
Product Overview
This pressure gauge inline fitting is made of stainless steel and processed by CNC precision machining, serving as a core connecting component for pressure gauge systems.
Application Scenarios & Working Requirements
- Industrial Fluid PipelinesCommonly used in oil & gas, water treatment and chemical conveying pipelines. It requires high pressure resistance, stable sealing performance and excellent corrosion resistance. Precise dimensional tolerance ensures accurate pressure monitoring.
- Hydraulic & Pneumatic Systems of MachineryMatched with pressure monitoring modules of machine tools, automated equipment and construction machinery. The product features good shock resistance and compact structure to fit limited installation space, and maintains stable connection under repeated working conditions.
- Complete Instrument & Meter EquipmentIntegrated into testing instruments, laboratory equipment and metering devices. It demands high surface finish and assembly coaxiality with neat appearance to meet the standards of precision instruments.
- Vehicle-mounted & Mobile Special EquipmentApplied on mobile engineering vehicles and vehicle-mounted testing devices. The component is resistant to high and low temperature, vibration and impact, suitable for harsh outdoor operating conditions.
Machining & Customization
We specialize in CNC finishing for such fittings. Custom solutions are available for various positioning and adjusting devices to meet diverse installation and adjustment demands.
Multiple material options are provided, including carbon steel, stainless steel, brass and engineering plastic, to adapt to different working conditions such as varying pressure, corrosion and temperature.
Technical Support
With professional CNC machining capabilities and rich industry experience, we deliver tailored solutions to help clients strengthen competitiveness and expand market business.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
| OUR CAPACITY | ||||
| Main product names: | Stainless steel screws, carbon steel screws, pins, rivets, nuts, | |||
| eccentric nails, embedded parts, and other fasteners. | ||||
| Business Type | Factory / Maufacture | |||
| Service | CNC Machining | |||
| Turning and Milling | ||||
| CNC Turning | ||||
| Cold heading | ||||
| stamping | ||||
| Assembly Service | ||||
| Material | 1). Aluminum: AL 6061-T6, 6063, 7075-T etc | |||
| 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc | ||||
| 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. | ||||
| 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc | ||||
| 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc | ||||
| 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc | ||||
| 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. | ||||
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, | |||
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, | ||||
| electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), | ||||
| Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. | ||||
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |||
| Tolerance | +/-0.01mm ~ +/-0.05mm | |||
| Surface roughness | Ra 0.1~3.2 | |||
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM | |||
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | ||||
