SS Semi Hollow Cylindrical Pin Round Head Mechanical Ship Component
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-120003 |
Product Details
Material:
Stainless Steel
Category:
Pin
Surface Treatment:
Passivation
Processing Technology:
Turning
Sample Period:
10 To 15 Days
Precision:
Min0.001
Head Shape:
Circle
Standardscompliance:
ISO 9001 Certified
Size:
Various Sizes Available
Material Grade:
SUS303
Productname:
Ships Hardware
Application:
Marine And Shipbuilding
Weight:
Lightweight
Corrosionresistance:
High
Durability:
High
Packing:
Carton
Origin:
China
Highlight:
Stainless steel cylindrical pin
,semi hollow cylindrical pin
,Round Head ship component
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description

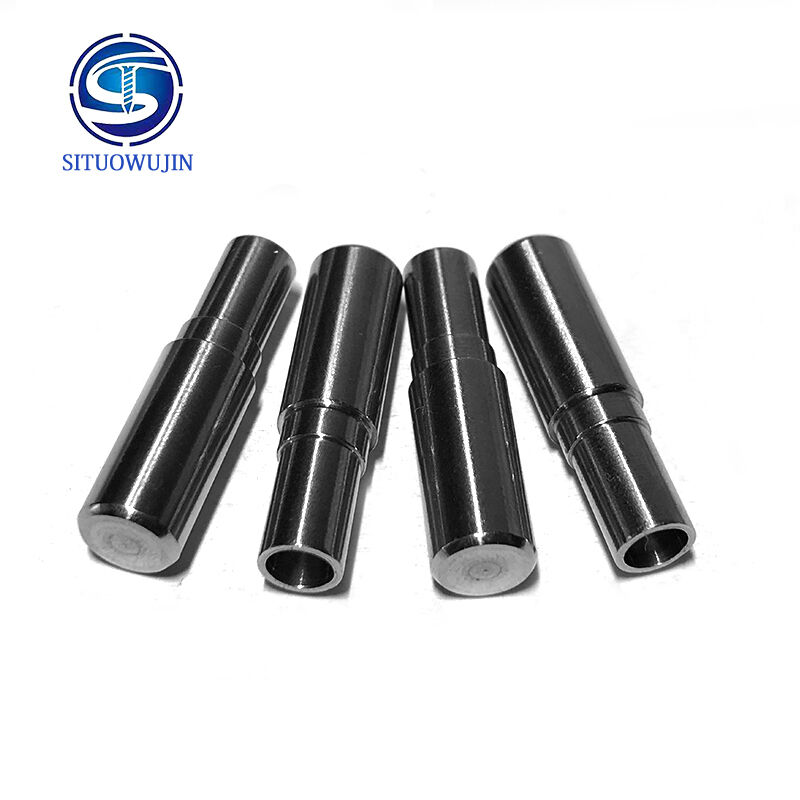

SS Semi Hollow Cylindrical Pin Round Head Mechanical Ship Component
Stainless steel semi-hollow cylindrical pin with round head pin - Marine mechanical parts and hardware
Application Scenarios in Shipbuilding Industry
Typical Application Scenarios
- Hull structure & deck machinery: Connection and positioning for hatch covers, rudders, hinges, brackets, deck cranes, winches and other movable components
- Ship outfitting parts: Hinges of doors, windows, hatches, handrails, ladders, marine furniture and assembly mechanisms
- Propulsion & steering system: Positioning pins for connecting rods, rocker arms, linkages and transmission components
- Marine piping & valves: Positioning and locking pins for valve actuators, dampers, quick-release clamps and pipe supports
- Offshore & marine equipment: Quick-release pins for life-saving equipment, davits, lifting appliances, container locks and movable modules
- Marine electrical equipment: Positioning pins for electrical cabinets, control consoles, junction boxes and fixed brackets
Core Technical Characteristics
Structural Design Advantages
- Precise positioning: High concentricity and fit clearance, ensuring stable assembly and alignment
- Shear resistance: Mainly bears shear force, suitable for hinged and rotating connections
- Easy installation & disassembly: Can be fitted with cotter pins, circlips or locking grooves for quick assembly
- Stable connection: Prevents radial movement and ensures reliable operation under vibration
Material & Corrosion Resistance
- Main materials: AISI 304, 316, 316L, duplex stainless steel 2205 / 2507
- Excellent corrosion resistance: Resists seawater, salt spray, humidity and marine atmospheric corrosion
- Surface treatment: Passivation, electropolishing, mechanical polishing to improve corrosion resistance and appearance
- Compliance: Meets marine corrosion protection standards and marine classification requirements
Mechanical Performance
- High shear strength: Stable mechanical properties under alternating load and impact
- Good toughness: Resists fracture under ship vibration, wave impact and mechanical shock
- Fatigue resistance: Suitable for long-term dynamic load and repeated opening-closing movements
- Dimensional stability: Small deformation, ensuring long-term fit accuracy
Processing & Standardization
- Customizable: Can be designed with grooves, holes, threads, flats or stepped shafts
- Processing: CNC turning, grinding, heat treatment, precision finishing
- Quality control: Hardness testing, dimensional inspection, salt spray test, ultrasonic inspection if required
- Certification: Can be produced according to marine standards and classification society requirements (CCS, LR, DNV, BV, ABS)
Selection & Installation Guidelines
- Material selection: 316/316L for general marine use; duplex stainless steel for severe corrosion environments
- Fit clearance: Select clearance / transition fit based on working conditions (rotating, positioning, hinging)
- Locking mode: Use circlips, cotter pins, locking nuts or threaded ends to prevent falling off
- Installation: Ensure coaxiality; avoid excessive knocking to prevent deformation or surface damage
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Manufacturing Capabilities
Technical Specifications
- Maximum processing outer diameter: 60mm
- Minimum control tolerance: 0.001mm
- Equipment includes: Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment
Company Profile
- Total employees: 300
- Technical team: 20 technicians, 10 engineers, 15 quality control personnel
- Equipment: Over 300 pieces of equipment
- Management: 8S management system
- Certifications: ISO9001 and TS16949 automotive certifications
Major Customers
bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar
Production Capacity Details
| Main Products | Stainless steel screws, carbon steel screws, pins, rivets, nuts, eccentric nails, embedded parts, and other fasteners |
|---|---|
| Business Type | Factory / Manufacturer |
| Services | CNC Machining, Turning and Milling, CNC Turning, Cold heading, Stamping, Assembly Service |
| Materials |
Aluminum: AL 6061-T6, 6063, 7075-T etc Stainless steel: 303,304,304L,316L,316F,630,410,420,430, etc Steel: 4140, Q235, Q345B,20#,45# 1215,12L14,1144,1006,1008,1010,1015,1018,10B21,1035,1065 etc Alloy steel: 5140,4135,4140,3435,5120,415,435,440 etc Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc Other: Copper, bronze, Magnesium alloy, Delrin, POM, Acrylic, PC, etc |
| Finishes | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing, Chrome Plating, Knurl, Laser etch Logo, etc |
| Drawing Formats | STEP, STP, GIS, CAD, PDF, DWG, DXF etc or samples |
| Tolerance | +/-0.01mm ~ +/-0.05mm |
| Surface Roughness | Ra 0.1~3.2 |
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier, CMM, Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
