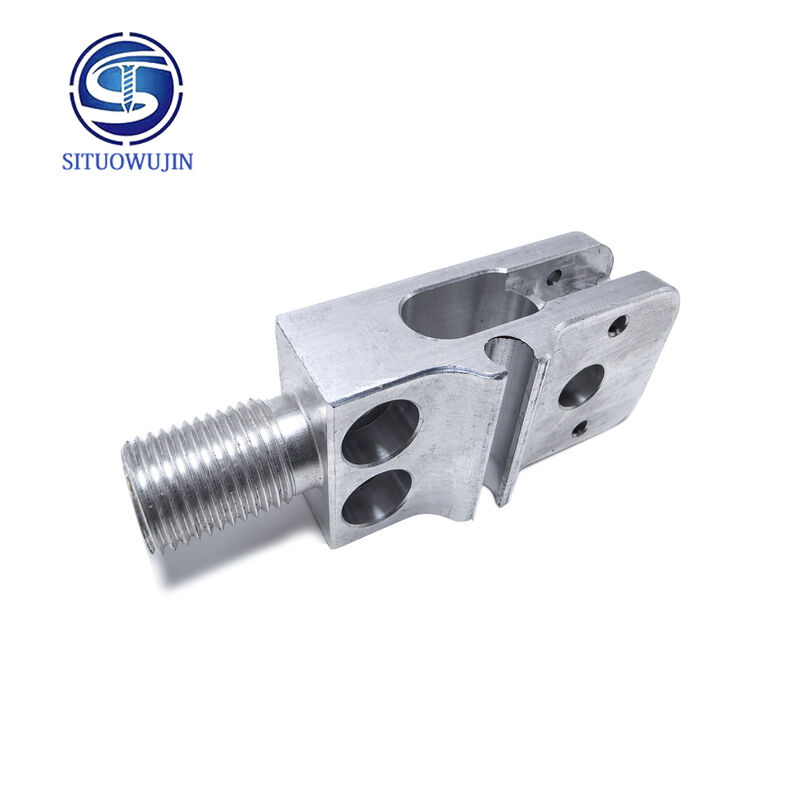

Custom Trapezoidal Aluminum Gripper Head, High Precision CNC Automation Handling Clamp Fittings
|
Custom Trapezoidal Aluminum Gripper Head, High Precision CNC Automation Handling Clamp Fittings
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-1000014 |
Product Details
Material:
Al
Category:
Automation Gripper Head
Productname:
AI Hardware Components
Surface Treatment:
Oxidation
Processing Technology:
Turning
Sample Period:
10 To 15 Days
Precision:
Min 0.01
Head Shape:
Customizable
Manufacturer:
AI Hardware Inc.
Our Service:
One-step Service
Size:
28.0MM
Packing:
Plastic Pallets
Qc Control:
100% Inspectton
Specification:
Customized
Origin:
China
Corrosionresistance:
High
Highlight:
Custom trapezoidal aluminum gripper head
,High precision CNC automation clamp
,Aluminum gripper head handling fittings
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description
Custom Trapezoidal Aluminum Gripper Head, High Precision CNC Automation Handling Clamp Fittings
1. Product Overview
Trapezoidal aluminum automation gripper heads are customized CNC machined clamping parts manufactured with complete precision processing workflow, widely matched with industrial robots and automated pneumatic grabbing equipment. Solid aluminum alloy bars are adopted as raw material and processed integrally by 5-axis CNC turning & milling machines. The trapezoidal clamping bevel, datum surface, mounting holes and threads are precisely formed. Unlike die-cast or stamped grippers, CNC machined parts are free of pores, shrinkage cavities and deformation risks, with controllable trapezoid angle, parallelism and hole tolerance. We support process adjustment and structural modification according to customer drawings or samples, covering prototype trial production and mass continuous order, serving as reliable custom machined components for automated grabbing equipment.
2. Processing Technology & Core Advantages
1. Strict Raw Material Inspection, Solid Aluminum Alloy Blanks
Original solid aluminum alloy bars are selected as blanks instead of hollow profiles or recycled materials. Stable chemical composition and uniform metallographic structure prevent cracking and deformation during long-term operation. Material certification is available and hardness sampling inspection is implemented before processing, ensuring structural rigidity to bear cyclic clamping load on automation lines.
2. 5-Axis Integrated CNC Machining Ensures Accurate Trapezoidal Profile
One-time clamping on multi-axis CNC equipment completes simultaneous machining of trapezoidal inclined surfaces, datum planes, positioning holes and threads, minimizing accumulated tolerance from repeated clamping. Closed-loop system strictly controls trapezoid inclination angle, symmetry of paired jaws and flatness of clamping surfaces. Deburring and fine chamfering are finished after machining to avoid scratching during assembly and ensure even contact when clamping workpieces.
3. Standard Post-Treatment Improves Wear & Corrosion Resistance
Stress relief treatment is carried out after precision machining to remove internal cutting stress and avoid dimensional shift under long-term cyclic load. Surface treatments including sandblasting and hard anodizing are available as requested. Uniform oxide layer enhances wear resistance of trapezoidal clamping faces against repeated friction, as well as anti-oxidation performance for humid and oily workshop environments.
4. Complete Inspection Process Guarantees Batch Consistency
Three-stage inspection system including first article inspection, in-process patrol inspection and final inspection is implemented. Calipers, height gauges and vision measuring instruments are used to test trapezoidal angle, hole position and parallelism. Sampling fatigue simulation tests are arranged before delivery. All machining records are traceable to control defect rate and guarantee interchangeability for after-sales spare part replacement.
5. Flexible Production Capacity for Prototyping, Modification & Mass Orders
Flexible CNC production line meets diversified customization demands. Prototypes can be quickly produced according to customer drawings. We support structural adjustment on trapezoidal angle, jaw length and thickness based on testing feedback. Small-batch trial orders are available for solution verification before switching to mass production with controllable lead time for repeat orders.
3. Application Scenarios
✅ CNC machined trapezoidal gripper jaws matched with pneumatic fingers on automated production lines
✅ Custom machined grabbing heads for industrial robotic arms and collaborative robots
✅ Clamping components for automated transfer equipment of 3C, plastic and hardware products
✅ Precision CNC parts for self-centering fixtures of round and tapered workpieces
✅ Wear-resistant clamping accessories for automated assembly and sorting machinery
4. Production & Delivery Service
We are equipped with complete CNC precision machining production lines to undertake custom processing of trapezoidal gripper heads and non-standard clamping parts. Drawing confirmation and first article sample validation are supported, and production progress can be updated synchronously. Dimension inspection reports can be provided for each batch, and third-party material testing can be coordinated. We deliver steadily for small R&D prototype orders and mass supporting orders for automation equipment manufacturers, providing one-stop precision machining solutions.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
| OUR CAPACITY | ||||
| Main product names: | Stainless steel screws, carbon steel screws, pins, rivets, nuts, | |||
| eccentric nails, embedded parts, and other fasteners. | ||||
| Business Type | Factory / Maufacture | |||
| Service | CNC Machining | |||
| Turning and Milling | ||||
| CNC Turning | ||||
| Cold heading | ||||
| stamping | ||||
| Assembly Service | ||||
| Material | 1). Aluminum: AL 6061-T6, 6063, 7075-T etc | |||
| 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc | ||||
| 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. | ||||
| 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc | ||||
| 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc | ||||
| 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc | ||||
| 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. | ||||
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, | |||
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, | ||||
| electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), | ||||
| Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. | ||||
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. | |||
| Tolerance | +/-0.01mm ~ +/-0.05mm | |||
| Surface roughness | Ra 0.1~3.2 | |||
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM | |||
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | ||||
