Custom CNC Cylindrical Pin, High Precision Tool Assembly Positioning Pin
|
Custom CNC Cylindrical Pin, High Precision Tool Assembly Positioning Pin
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-600018 |
Product Details
Head Shape:
Customized
Durability:
High
Corrosion Resistance:
Yes
Precision:
Min 0.01
Country Of Origin:
China
Category:
Tool Screws
Sample Period:
10 To 15 Days
Working Type:
Cutting Off
Cutting Depth:
30mm
Packing:
Color Box And Carton
Size:
20mm-230mm
Material:
Carbon
Surface Treatment:
Galvanized
Processing Technology:
Cold Heading
Highlight:
Custom CNC cylindrical pin
,High precision positioning pin
,Tool assembly cylindrical pin
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description

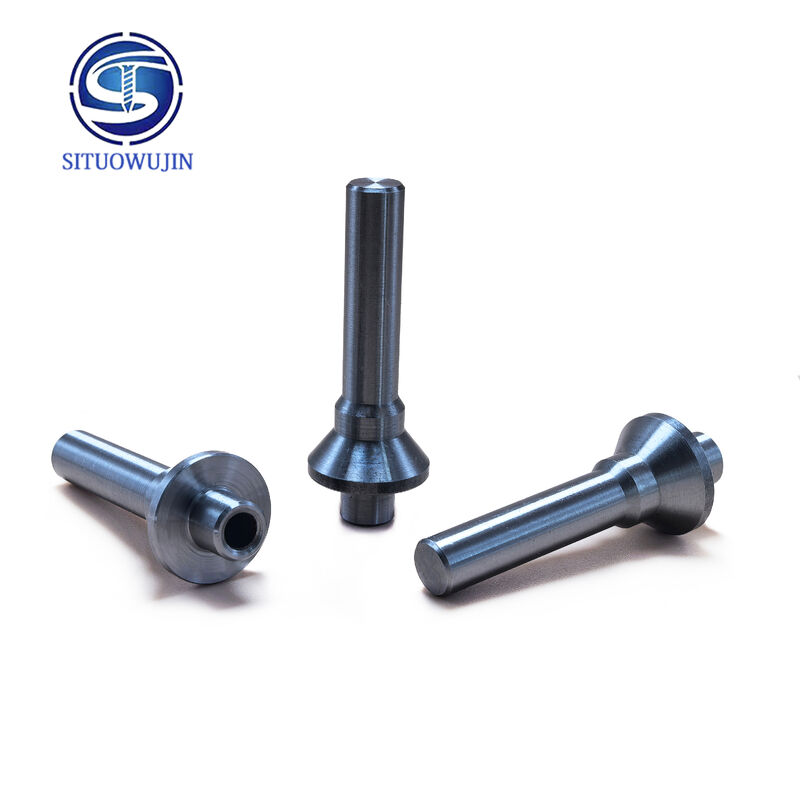

Custom CNC Cylindrical Pin, High Precision Tool Assembly Positioning Pin
Product Overview
Custom CNC Cylindrical Pin is a high-precision mechanical positioning component widely used for tool assembly, fixture calibration and industrial equipment matching. Manufactured by professional CNC turning and precision machining, this cylindrical pin features accurate dimensions, smooth surface and excellent consistency. It is designed for precise positioning, limiting and fixing work, effectively improving assembly accuracy and stability of mechanical tools and automation equipment.
Key Features
High Precision CNC Machining
Each pin is processed by precision CNC equipment with strict tolerance control. The pin body features high straightness, smooth surface without burrs, ensuring tight fitting and accurate alignment during assembly. It meets the high-precision matching requirements of tooling and mechanical structures.
Stable Mechanical Performance
Made of high-quality industrial metal materials with good hardness and toughness. The cylindrical pin is resistant to compression and friction, not easy to deform after long-term repeated plugging and positioning work, maintaining stable working performance.
Excellent Positioning Effect
Standard cylindrical structure ensures uniform stress and accurate limiting. It effectively reduces assembly deviation, avoids component shaking and displacement, and greatly improves the overall consistency and stability of tool assembly.
Strong Customization & Interchangeability
Support custom diameter, length, groove, step and surface treatment according to customer drawings and samples. Standard finished pins have good interchangeability, convenient for quick replacement and batch assembly production.
Application Scope
✅ Precision tooling fixture positioning and limiting pins
✅ Mechanical equipment assembly calibration components
✅ Automation jig and tool assembly fixing pins
✅ Industrial precision machinery matching cylindrical parts
✅ Custom non-standard CNC machining positioning hardware
Quality Assurance
All custom CNC cylindrical pins undergo strict dimensional inspection and appearance testing before delivery. We provide stable-quality precision positioning pins for machinery processing, automation equipment and tooling manufacturing industries, supporting both sample customization and mass order production.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
-
OUR CAPACITY Main product names: Stainless steel screws, carbon steel screws, pins, rivets, nuts, eccentric nails, embedded parts, and other fasteners. Business Type Factory / Maufacture Service CNC Machining Turning and Milling CNC Turning Cold heading stamping Assembly Service Material 1). Aluminum: AL 6061-T6, 6063, 7075-T etc 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. Finish Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. Drawing format STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. Tolerance +/-0.01mm ~ +/-0.05mm Surface roughness Ra 0.1~3.2 Inspection Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge
