Custom CNC Cylindrical Locating Pin, Precision Fixture Assembly Tool Parts
|
Custom CNC Cylindrical Locating Pin, Precision Fixture Assembly Tool Parts
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-600022 |
Product Details
Sample Period:
10 To 15 Days
Processing Technology:
CNC
Corrosion Resistance:
Yes
Head Shape:
Customized
Durability:
High
Country Of Origin:
China
Category:
Tool Screws
Precision:
Min 0.01
Cutting Depth:
43mm
Working Type:
Cutting Off
Size:
20mm-230mm
Packing:
Color Box And Carton
Material:
Carbon
Surface Treatment:
Customized
Highlight:
Custom CNC cylindrical locating pin
,Precision fixture assembly tool
,CNC locating pin with warranty
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description

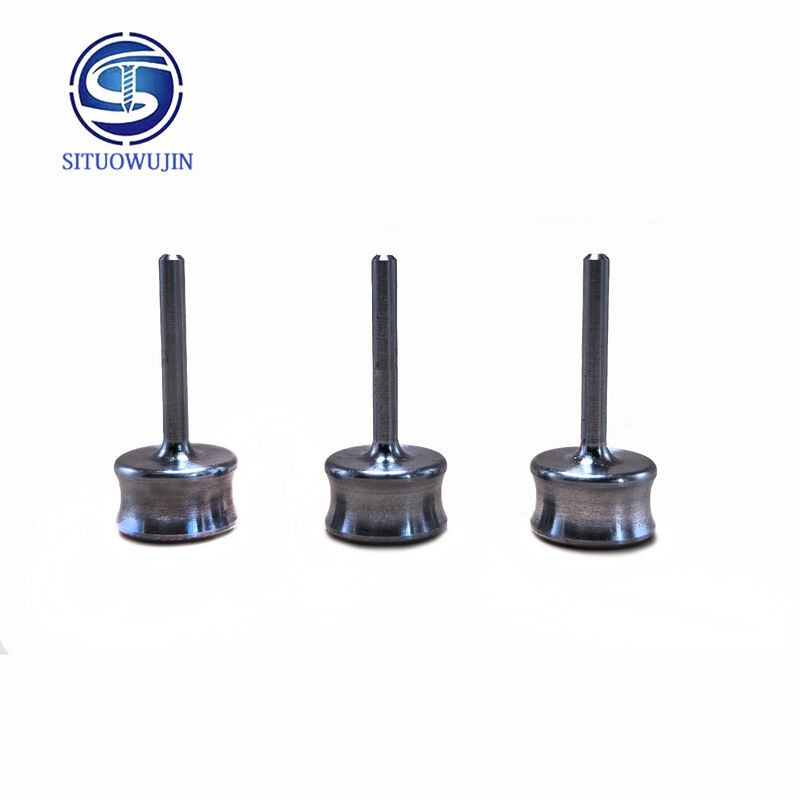

Custom CNC Cylindrical Locating Pin, Precision Fixture Assembly Tool Parts
Product Overview
Custom CNC Cylindrical Locating Pin is a high-precision tool accessory widely used for fixture positioning, equipment alignment and mechanical assembly. Adopting advanced CNC precision machining technology, this cylindrical pin features accurate dimensions, smooth surface and excellent consistency. It effectively improves assembly accuracy, reduces positioning deviation, and ensures stable and repeatable matching for industrial tooling and automation equipment.
Key Features
High Precision CNC Machining
Processed by multi-axis CNC equipment with strict tolerance control. The pin body owns high straightness and roundness, smooth surface without burrs. It achieves precise fitting and guarantees stable positioning accuracy for long-term repeated assembly.
Reliable Structural Performance
Made of high-quality industrial raw materials with good hardness and wear resistance. The pin is not easy to deform or wear under continuous extrusion and friction, maintaining stable mechanical performance in daily industrial working conditions.
Accurate Positioning & Firm Locking
Standard cylindrical structure enables close matching with mounting holes. It effectively limits component displacement and shaking, improves overall assembly stability, and ensures consistent product assembly precision during mass production.
Strong Custom Compatibility
Support full customization according to customer drawings and samples, including diameter, length, step shape, groove structure and surface treatment. Both standard and non-standard precision pins are available to meet diverse tooling matching needs.
Application Scope
✅ Precision fixture and tooling positioning pins
✅ Automation equipment assembly locating parts
✅ Mechanical equipment calibration and fixing pins
✅ Industrial precision machinery matching accessories
✅ Custom non-standard CNC machining tool parts
Quality Assurance
All CNC cylindrical locating pins pass strict dimensional inspection and appearance testing before delivery. We support sample trial production and mass production, providing high-precision and cost-effective tool accessories for machinery manufacturing, automation and fixture processing industries.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
-
OUR CAPACITY Main product names: Stainless steel screws, carbon steel screws, pins, rivets, nuts, eccentric nails, embedded parts, and other fasteners. Business Type Factory / Maufacture Service CNC Machining Turning and Milling CNC Turning Cold heading stamping Assembly Service Material 1). Aluminum: AL 6061-T6, 6063, 7075-T etc 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. Finish Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. Drawing format STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. Tolerance +/-0.01mm ~ +/-0.05mm Surface roughness Ra 0.1~3.2 Inspection Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge
