Solid Straight Knurled Pin, Single Side Knurling Cylindrical Locating Shaft
|
Solid Straight Knurled Pin, Single Side Knurling Cylindrical Locating Shaft
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-600014 |
Product Details
Head Shape:
Customized
Durability:
High
Corrosion Resistance:
Yes
Precision:
Min 0.01
Country Of Origin:
China
Category:
Tool Screws
Sample Period:
10 To 15 Days
Working Type:
Cutting Off
Cutting Depth:
30mm
Packing:
Color Box And Carton
Size:
20mm-230mm
Material:
Carbon
Surface Treatment:
Galvanized
Processing Technology:
CNC
Highlight:
Solid Straight Knurled Pin
,Single Side Knurling Shaft
,Cylindrical Locating Pin
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description

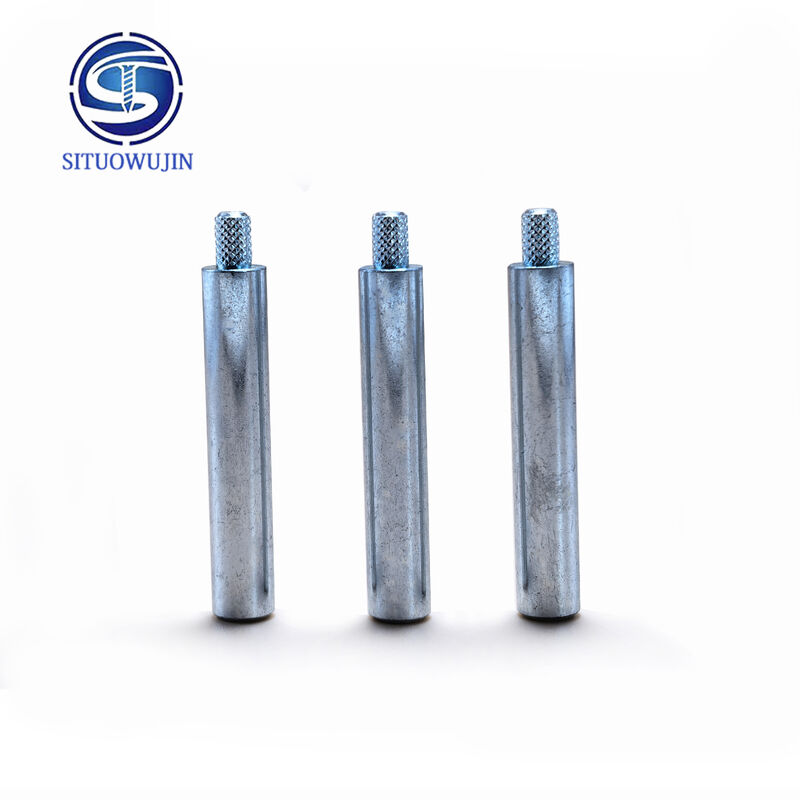

Solid Straight Knurled Pin, Single Side Knurling Cylindrical Locating Shaft
Product Overview
This Single End Knurling Solid Smooth Shaft is a high-precision cylindrical locating and fastening pin widely used for mechanical assembly, equipment positioning and structural locking. Adopting one-piece solid structure and professional single-end knurling process, the shaft features smooth body surface and neat knurled texture at one end. It provides tight insertion, firm installation and non-slip positioning effect, serving as reliable hardware fasteners for industrial machinery, automation fixtures and electronic equipment assembly.
Product Features
Solid Integrated Structure, High Structural Stability
Made of solid one-piece forming structure without hollow design. The overall shaft body features high rigidity, strong compression resistance and not easy to bend or deform under normal assembly load. It supports long-term repeated plugging and positioning work with stable structural performance.
Single End Knurling Anti-Slip Design
Precision knurling treatment on single end forms uniform and clear grain. The knurled section increases friction after installation, effectively preventing loosening, slipping and displacement during equipment operation. It greatly improves assembly firmness and positioning stability.
Smooth Shaft Surface, Easy Installation
The main shaft body retains smooth finish with fine processing, no burrs or scratches. It ensures smooth insertion and matching during assembly, effectively cooperating with mounting holes to achieve accurate positioning and convenient disassembly and replacement.
High Dimensional Accuracy & Good Interchangeability
Manufactured by precision machining with strict tolerance control. The product features consistent roundness and straightness, ensuring high matching accuracy. Standard specifications provide good interchangeability for batch assembly and daily replacement of mechanical parts.
Application Scenarios
✅ Mechanical equipment positioning and locking roll pins
✅ Automation tooling fixture assembly locating shafts
✅ Electronic equipment structural fixing fasteners
✅ Precision machinery assembly anti-slip dowel pins
✅ Industrial equipment matching cylindrical pin parts
Customization & Quality Control
We support customized diameter, length, knurling position and surface treatment for solid knurled shafts. All products pass strict dimensional inspection and surface quality check before shipment. Stable quality and precise workmanship meet customized and mass procurement demands for industrial mechanical supporting parts.
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include , bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
-
OUR CAPACITY Main product names: Stainless steel screws, carbon steel screws, pins, rivets, nuts, eccentric nails, embedded parts, and other fasteners. Business Type Factory / Maufacture Service CNC Machining Turning and Milling CNC Turning Cold heading stamping Assembly Service Material 1). Aluminum: AL 6061-T6, 6063, 7075-T etc 2). Stainless steel:303,304,304L,316L,316F,630,410,420,430, etc 3). Steel: 4140, Q235, Q345B,20#,45# 1215,12L14 ,1144,1006,1008,1010,1015,1018 ,10B21,1035,1065 etc. 4)Alloy steel:5140,4135,4140,3435,5120,415 ,435,440 etc 5). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc 6). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90),C27000,C51900,C11000,C3604,H62,H65 etc 7). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. Finish Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. Drawing format STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. Tolerance +/-0.01mm ~ +/-0.05mm Surface roughness Ra 0.1~3.2 Inspection Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge
