Custom Adjustable CNC Machined Precision Tooling Connection Locating Pin with High Durability
|
Custom Adjustable CNC Machined Precision Tooling Connection Locating Pin with High Durability
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-600029 |
Product Details
Head Shape:
Non-standard
Processing Technology:
CNC
Packing:
Color Box And Carton
Surface Treatment:
Customized
Sample Period:
10 To 15 Days
Size:
102MM
Corrosion Resistance:
Yes
Cutting Depth:
100mm
Category:
Tool Screws
Working Type:
CNC+Cold Heading
Material:
Carbon Steel
Durability:
High
Country Of Origin:
China
Precision:
Min 0.01
Highlight:
CNC Machined Precision Tooling Connection Locating Pin
,High Durability Mechanical Accessories
,Custom Adjustable Tool Connecting Pin Shaft
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description

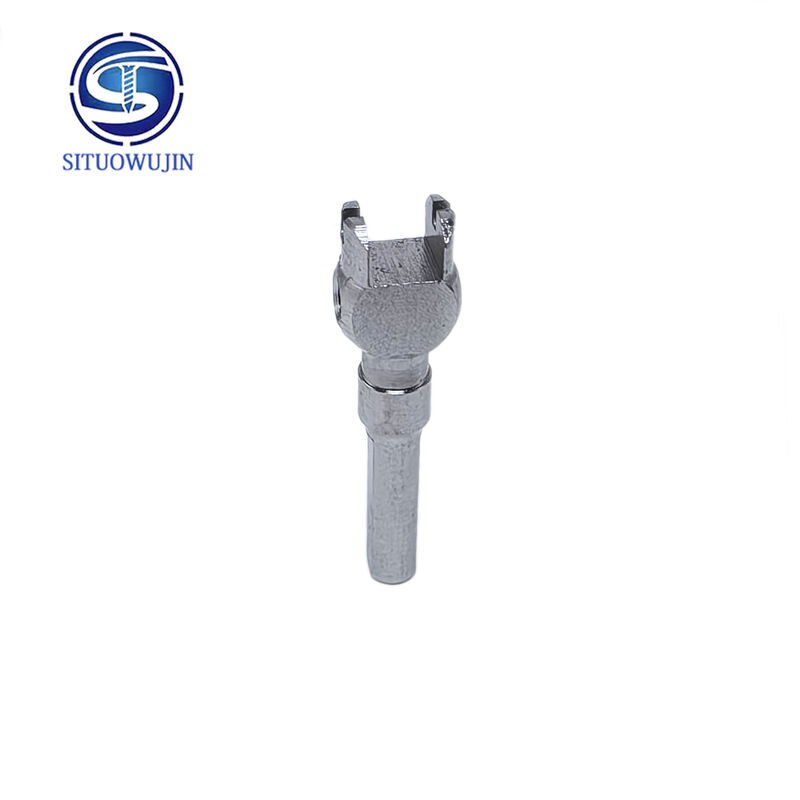

Custom Adjustable Tool Connecting Pin Shaft
Situo Hardware is a professional custom factory specializing in custom adjustable tool connecting pin shafts and CNC machined precision tooling connection locating pin mechanical accessories. We focus on non-standard CNC machined tooling parts for industrial automation jigs, precision fixtures, testing tools and mechanical equipment modules.
Core Product Advantages
Precision One-Piece CNC Machining
Entire pin shaft integrally formed in single clamping process, eliminating secondary processing deviation and mold tolerance errors. Strictly controlled straightness, roundness and concentricity ensure smooth burr-free surface and excellent batch consistency.
Flexible Adjustable Structure
Supports precise gap fine-tuning and stroke adjustment, perfectly adapting to assembly tolerance errors and space deviations. Eliminates need for multiple pin specifications, reducing inventory and tooling transformation costs.
Dual Connection & Positioning Functions
Integrates high-strength fastening connection and accurate limiting positioning. Achieves tight fitting and zero-shake locking after fine adjustment, ensuring precise alignment benchmark for frequent disassembly applications.
High-Quality Wear-Resistant Materials
Industrial-grade solid 304/316 stainless steel and high-hardness carbon steel. Stainless steel provides excellent rust and corrosion resistance; heat-treated carbon steel features high surface hardness and strong fatigue resistance.
Full Non-Standard Customization
Custom shaft diameter, length, adjustment stroke, stepped structure, locking holes and thread specifications. Supports rapid prototyping and large-scale OEM mass production according to customer requirements.
Strict Industrial-Grade QC System
All finished pins undergo concentricity testing, straightness calibration, adjustment smoothness testing, full-dimensional inspection and simulated assembly verification. Batch qualified rate over 99%.
Application Scenarios
- Adjustable gap fine-tuning locating pins for automation tooling jigs
- Stroke adjustment and precision limiting connecting pins for precision testing fixtures
- Spacing adaptation and flexible fixing pin shafts for mechanical equipment module assembly
- Non-standard alignment and error-tolerant assembly hardware for intelligent instrument tooling
- Flexible adjustable connecting accessories for repeatedly debugged industrial tooling
Service & Production Capacity
Integrated production process covers raw material selection, one-piece CNC precision cutting, adjustable structure optimization, surface finishing and strict quality inspection. We support 3-5 days rapid prototyping, flexible small-batch customization and large-scale mass production with inspection reports and export-grade packaging for global delivery.
Technical Specifications
| Business Type | Factory / Manufacturer |
|---|---|
| Services | CNC Machining, Turning and Milling, CNC Turning, Cold heading, stamping, Assembly Service |
| Materials | Aluminum, Stainless Steel, Steel, Alloy Steel, Titanium, Brass, Copper, Bronze, Magnesium, Engineering Plastics |
| Finishes | Sandblasting, Anodizing, Plating, Polishing, Powder Coating, Passivation, PVD, and more |
| Tolerance | ±0.01mm ~ ±0.05mm |
| Surface Roughness | Ra 0.1~3.2 |
Frequently Asked Questions
What is an adjustable tool connecting pin shaft used for?
It is a high-precision CNC machined flexible tool accessory, mainly used for gap fine-tuning, stroke adjustment, connecting fixing and precision positioning of automation tooling, mechanical modules and testing fixtures.
What are the advantages of adjustable pins over standard fixed pins?
The adjustable structure supports on-site fine-tuning to adapt to assembly tolerance deviations, avoiding frequent replacement of different specification pins, with stronger compatibility and lower tooling maintenance costs.
Can you customize special adjustment stroke and pin size?
Yes, we fully customize shaft diameter, length, adjustment range, locking structure and mounting method according to customer drawings and actual tooling debugging requirements.
Are adjustable connecting pins durable for frequent use?
Adopting high-hardness wear-resistant materials and integral CNC machining, the pins resist abrasion and structural looseness after long-term repeated adjustment, maintaining stable positioning accuracy.
