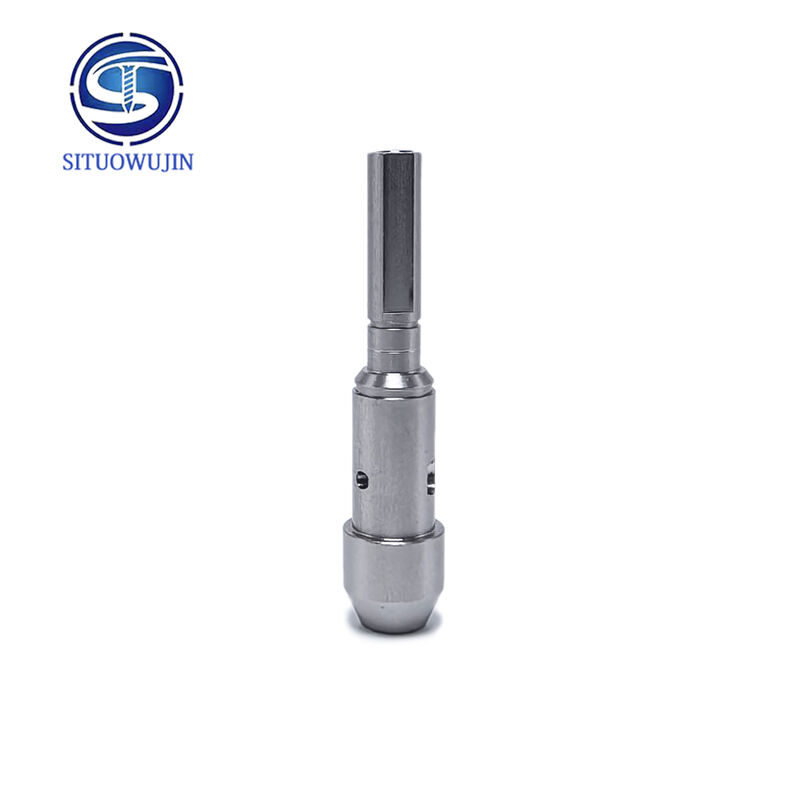

High End Beer Machine Component SUS304 Stainless Steel Pin Shaft
|
High End Beer Machine Component SUS304 Stainless Steel Pin Shaft
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-1400010 |
Product Details
Material:
Stainless Steel
Category:
Pin Shaft
Surface Treatment:
Passivation
Sample Period:
10 To 15 Days
Precision:
Min0.001
Head Shape:
Customized
Connectiontype:
Standard Quick Disconnect
Productname:
Pin Shaft
Compatiblebeertype:
All Draft Beers
Material Grade:
SUS304
Origin:
China
Packing:
Carton
Usage:
Machine
Highlight:
stainless steel pin shaft
,sus304 pin shaft
,sus304 adjustment long shaft
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description
High End Beer Machine Component SUS304 Stainless Steel Pin Shaft
High-end beer machine precision components, stainless steel pin shaft. CNC processing service.
Stainless Steel Pins Used in Beer Dispenser Components
Types, Features and Functions
1. Common Types and Applications of Stainless Steel Pins
1.1 Cylindrical Pins (GB/T 882 Type B, with split pin hole)
Application Areas
- Hinge shaft for tap handles / beer valves
- Locking shaft for keg couplers / distributors
- Hinge shaft for machine doors / panels
- Movable connection for internal connecting rods and levers
Features
- Food-grade 304/316 stainless steel, corrosion-resistant, easy to clean
- With split pin hole to prevent loosening
- Polished surface (Ra ≤ 0.8 μm), no dead ends, hygienic
- Standard sizes (Φ3-Φ12), good interchangeability
Functions
- Enable rotational / oscillating hinge movement
- Position and connect components to ensure alignment
- Reliable under frequent disassembly and cleaning
1.2 Flat / Round Head Positioning Pins (Parallel / Taper Pins)
Application Areas
- Precision positioning for taps, couplers, flow meters
- Fixing and positioning for panels, inner tanks, brackets
- Assembly positioning for valve seats and pump bodies
Features
- Parallel pins: accurate positioning, easy assembly
- Taper pins: self-locking, anti-vibration
- Non-magnetic, acid and alkali resistant
Functions
- Ensure high-precision alignment of components
- Improve structural rigidity and load capacity
- Simplify assembly and consistency
1.3 Slotted / Drilled Safety Pins (Overload Protection)
Application Areas
- Linkage shafts for pressure relief valves
- Safety pins for pump / motor drives
- Shear pins in overload protection mechanisms
Features
- Designed to break accurately to protect key parts
- Balanced strength and toughness in 304/316
- Slotted or drilled for quick replacement
Functions
- Prioritize shearing under overload to avoid damage
- Cut off drive during abnormal pressure for safety
- Reduce maintenance cost and downtime
1.4 Threaded Pins / Stud Pins
Application Areas
- High-strength connection for load-bearing brackets
- Modular components requiring frequent disassembly
- Fastening and positioning for pressure chambers
Features
- Threaded ends for preloading and anti-loosening
- 316L recommended for CIP cleaning resistance
- High precision, good concentricity
Functions
- Integrate connection and positioning
- Withstand combined tension and shear loads
- Allow quick module disassembly and maintenance
2. Core General Features (For Beer Equipment)
- Hygiene & Material: Food-grade 304/316 austenitic stainless steel, complies with NSF/ANSI 5 standards. Resistant to beer, hop acids and CIP cleaning agents.
- Surface Finish: Mechanical / electrolytic polishing (Ra ≤ 0.8 μm), burr-free, easy to clean, prevents biofilm buildup.
- Structure & Reliability: With holes for split pins / R-clips to prevent loosening; standard tolerances for high interchangeability.
- Safety & Maintenance: Safety pin design protects core components; non-magnetic, no interference with sensors or flow meters.
3. Selection Guidelines
- Material: 304 for general use; 316/316L for harsh cleaning environments.
- Size: Diameter Φ3-Φ12 based on load; tolerance h6/h7 for hinge fits.
- Anti-loosening: Always use split pins for movable hinges.
- Installation: Ensure concentricity to avoid eccentric wear.
Manufacturing Capabilities
We have introduced advanced equipment and technology from Japan and Germany (CNC 5-axis and 6-axis machines) to better serve our customers' needs.
Our maximum processing outer diameter is 60, and the minimum control tolerance is 0.001. We have Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming machines, 500T press machines, casting equipment, and various process equipment, which can effectively provide customers with the best technical solutions.
Our company has a total of 300 employees, including 20 technicians, 10 engineers, and 15 quality control personnel. We have over 300 pieces of equipment.
Our company implements 8S management and has passed ISO9001 and TS16949 automotive certifications.
Our customers include bo-sch, Foxconn, Motors, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, and Cater-pillar.
Our Capacity
| Main product names: | Stainless steel screws, carbon steel screws, pins, rivets, nuts, eccentric nails, embedded parts, and other fasteners. |
| Business Type | Factory / Manufacture |
| Service | CNC Machining, Turning and Milling, CNC Turning, Cold heading, stamping, Assembly Service |
| Material |
|
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), Electro Polishing, Chrome Plating, Knurl, Laser etch Logo, etc. |
| Drawing format | STEP, STP, GIS, CAD, PDF, DWG, DXF etc or samples. |
| Tolerance | +/-0.01mm ~ +/-0.05mm |
| Surface roughness | Ra 0.1~3.2 |
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier, CMM Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge |
