Precision Copper Machined Part Slotted Double Ear Connection Intelligent Hardware
| Place of Origin | GuangDong Dongguan |
| Brand Name | SITUO |
| Certification | ISO9001 & TS16949 |
| Model Number | ST-20007 |
Product Details
Material:
Copper
Category:
Connector
Surface Treatment:
Passivation
Sample Period:
10 To 15 Days
Precision:
Min0.001
Head Shape:
Customized
Corrosion Resistance:
High
Application:
Electrical And Mechanical Connections
Standard:
ISO GB DIN ANSI JIS
Size:
According To Your Requests
Sample:
Available
Specification:
Customized
Packing:
Plastic Bag And Carton Box
Highlight:
Precision copper machined part
,copper machined part double ear
,ANSI prototype cnc machining
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
5-10 USD per item
Packaging Details
Communication
Delivery Time
Communication
Payment Terms
T/T
Supply Ability
10000PCS per day
Product Description

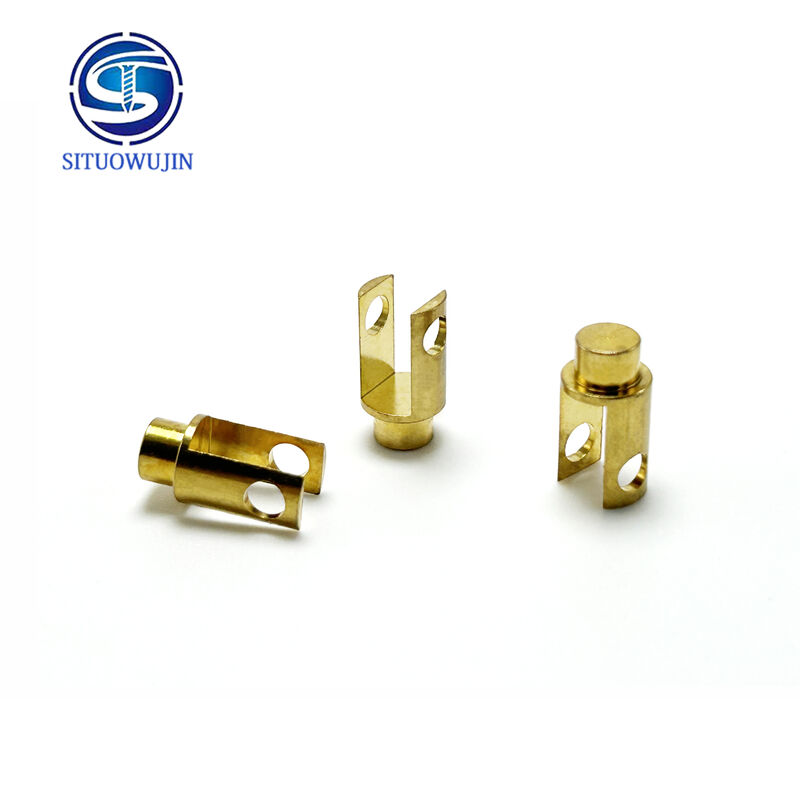

Precision Copper Machined Part Slotted Double Ear Connection Intelligent Hardware
Precision machined copper slotted double-ear connection piece for intelligent hardware accessories. Designed for reliable electrical connectivity in demanding applications.
Connector Specifications
Core User Requirements
- Stable power and signal transmission without interruption
- Waterproof and dustproof performance for outdoor/humid environments
- Easy plugging and unplugging with accurate positioning
- Secure connection that prevents loosening or arcing in vibrating environments
Customization Key Points
Electrical Performance
- Contact resistance: ≤ 20mΩ (the smaller the better)
- Rated current/voltage: Derated usage for enhanced safety
- Pin/socket retention force: Prevents disconnection
- Optimized insertion and extraction force
Sealing and Protection Levels
- IP54: Splash-proof protection
- IP65: Jet-proof protection
- IP67: Short-time immersion protection
- IP68: Continuous immersion protection
Structural Reliability
- Fool-proof/mis-insertion prevention design
- Anti-loosening mechanisms: thread, buckle, spring plate, nut locking
- High-strength housing: Impact, bending, and torsion resistance
Materials and Environmental Compliance
- Conductive components: Brass, phosphor bronze, beryllium copper (EU compliant)
- Plating options: Gold, silver, nickel plating
- Environmental standards: RoHS, REACH compliant
- Automotive grade: IATF16949, CQC, UL certified
Typical Applications
- Automotive: Body, engine, lighting, sensors, battery packs
- Industrial control: Servo motors, encoders, sensors, PLC systems
- Outdoor equipment: Street lighting, monitoring systems, charging stations
- Home appliances: Air conditioners, washing machines, coffee makers
- Medical equipment: Monitors, ultrasound devices, surgical equipment
Professional Material Selection
- Conductive contacts: Nickel-plated brass, phosphor bronze, beryllium copper
- Housing materials: Zinc alloy, aluminum alloy, 303/304/316 stainless steel
- High frequency applications: Red copper, silver alloy contacts
- High temperature applications: PPS + glass fiber, PEEK materials
We utilize advanced Japanese and German equipment including CNC 5-axis and 6-axis machines to serve customer needs. Maximum processing outer diameter: 60mm, minimum tolerance control: 0.001mm.
Manufacturing Capabilities
| Equipment | Description |
|---|---|
| CNC Machines | Japanese CNC Tsugami, CNC Citizen, multi-station cold extrusion forming |
| Press Machines | 500T press machines, casting equipment |
| Workforce | 300 employees including 20 technicians, 10 engineers, 15 QC personnel |
| Certifications | ISO9001, TS16949 automotive certifications, 8S management |
Major Clients
Foxconn, Husqvarna, Shimano, NVIDIA, DJI Drones, Siegenia, Cater-pillar
Production Capacity Details
| Category | Details |
|---|---|
| Main Products | Stainless steel screws, carbon steel screws, pins, rivets, nuts, eccentric nails, embedded parts, fasteners |
| Services | CNC Machining, Turning and Milling, CNC Turning, Cold heading, Stamping, Assembly |
| Materials |
Aluminum: 6061-T6, 6063, 7075-T Stainless Steel: 303,304,304L,316L,316F,630,410,420,430 Steel: 4140, Q235, Q345B, 20#, 45#, 1215, 12L14, 1144 series Alloy Steel: 5140, 4135, 4140, 3435, 5120, 415, 435, 440 Titanium: TA1, TA2/GR2, TA4/GR5, TC4, TC18 Brass: C36000, C37700, C26800, C22000 series Other: Copper, bronze, magnesium, Delrin, POM, Acrylic, PC |
| Finishes |
Sandblasting, Anodizing, Blackening, Zinc/Nickel Plating, Polishing, Powder coating, Passivation, PVD, Titanium Plating, Electrogalvanizing, Electroplating chromium, Electrophoresis, QPQ, Electro Polishing, Chrome Plating, Knurling, Laser etching |
| Technical Specifications |
Drawing formats: STEP, STP, GIS, CAD, PDF, DWG, DXF Tolerance: ±0.01mm to ±0.05mm Surface roughness: Ra 0.1~3.2 Inspection: Complete lab with micrometers, optical comparators, CMM, gauges |
